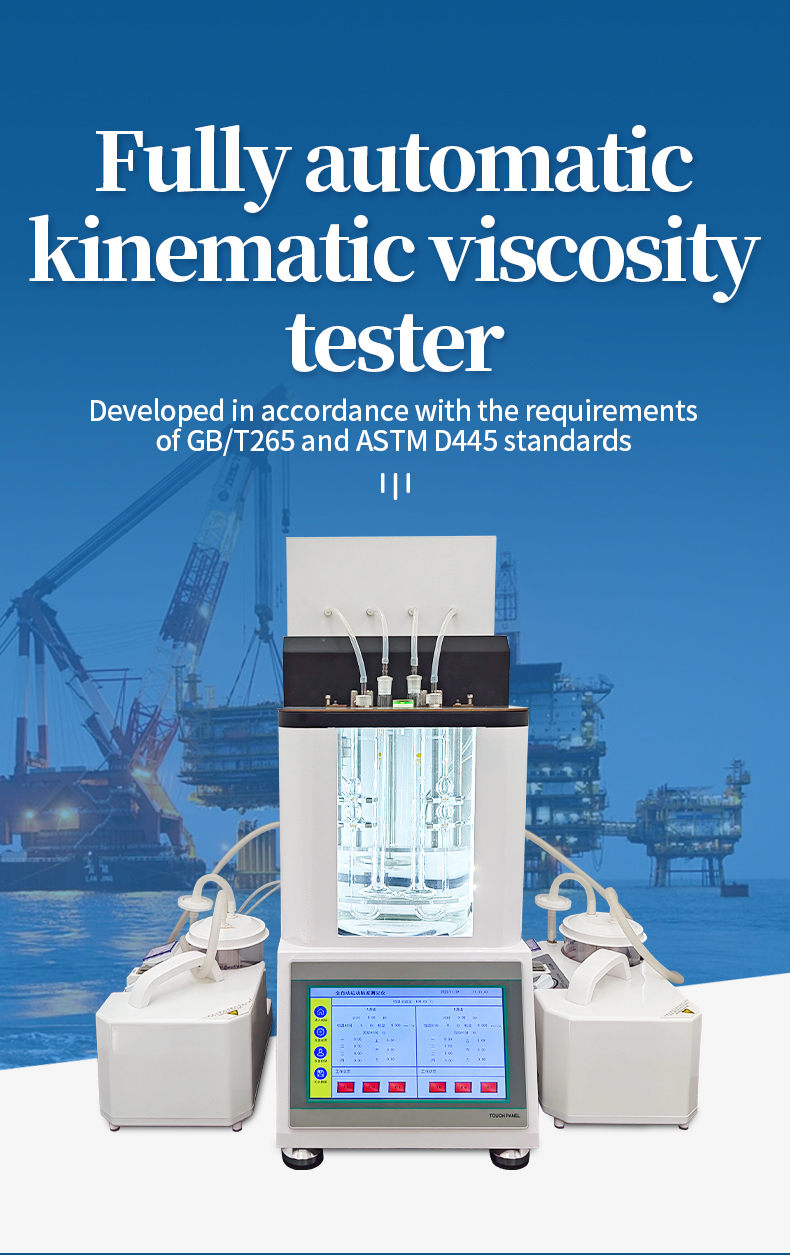

Fully Automatic Kinematic Viscosity tester HM-YN2

The fully automatic kinematic viscosity tester is developed in accordance with the requirements of GB/T265 and ASTM D445 standards, and is used to measure the kinematic viscosity of liquids and petroleum products. The structural design is exquisite, beautiful, practical, and comfortable to operate. One click quick constant temperature, oil sample suction, viscosity detection, viscosity value calculation, printing, viscosity tube cleaning, drying viscosity tube, no manual operation required, the instrument is automatically completed, and two samples can be tested at the same time, improving work efficiency; Widely used in pharmacopoeia, petroleum, chemical, scientific research, metrology, commodity inspection, power and other departments.

Main Features

1. The controller adopts high-speed dual CPUs, which have high reliability and measurement accuracy

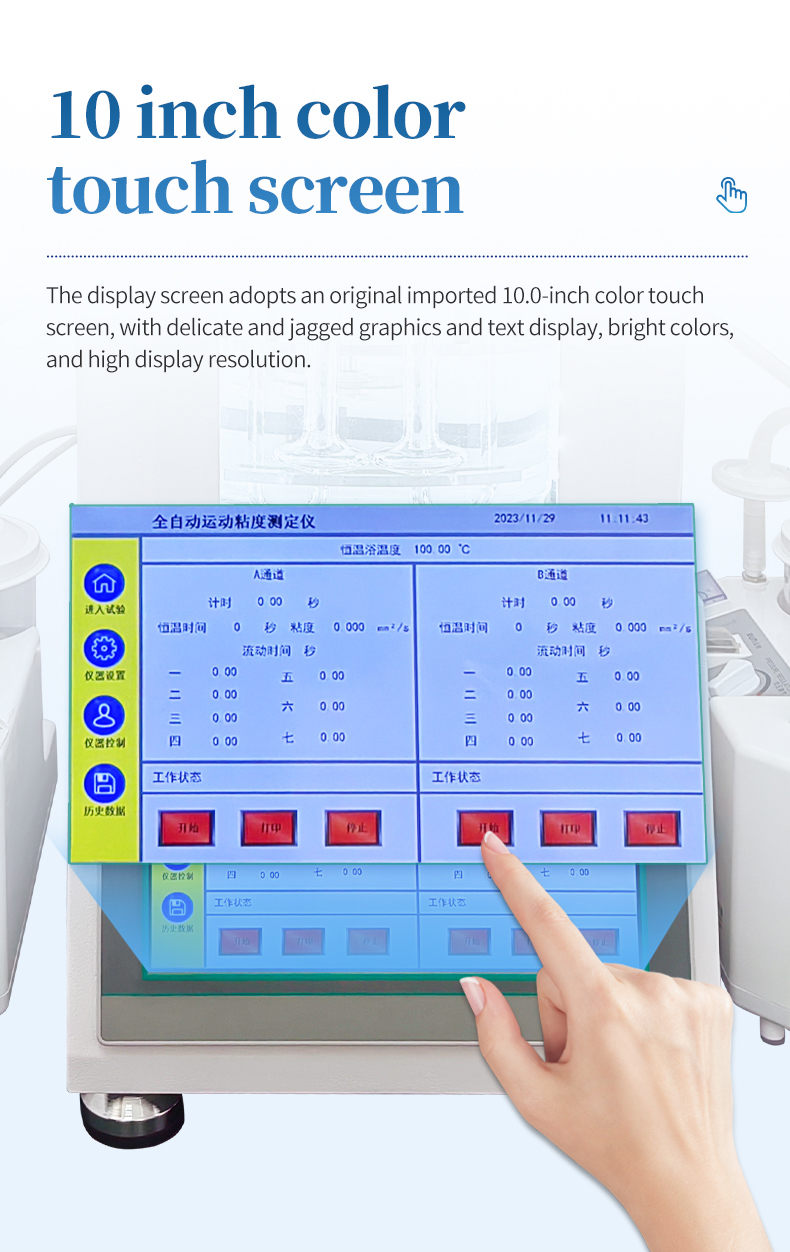

2. The display screen adopts an original imported 10.0-inch color touch screen, with delicate and jagged graphic and text display, bright colors, and high display resolution.

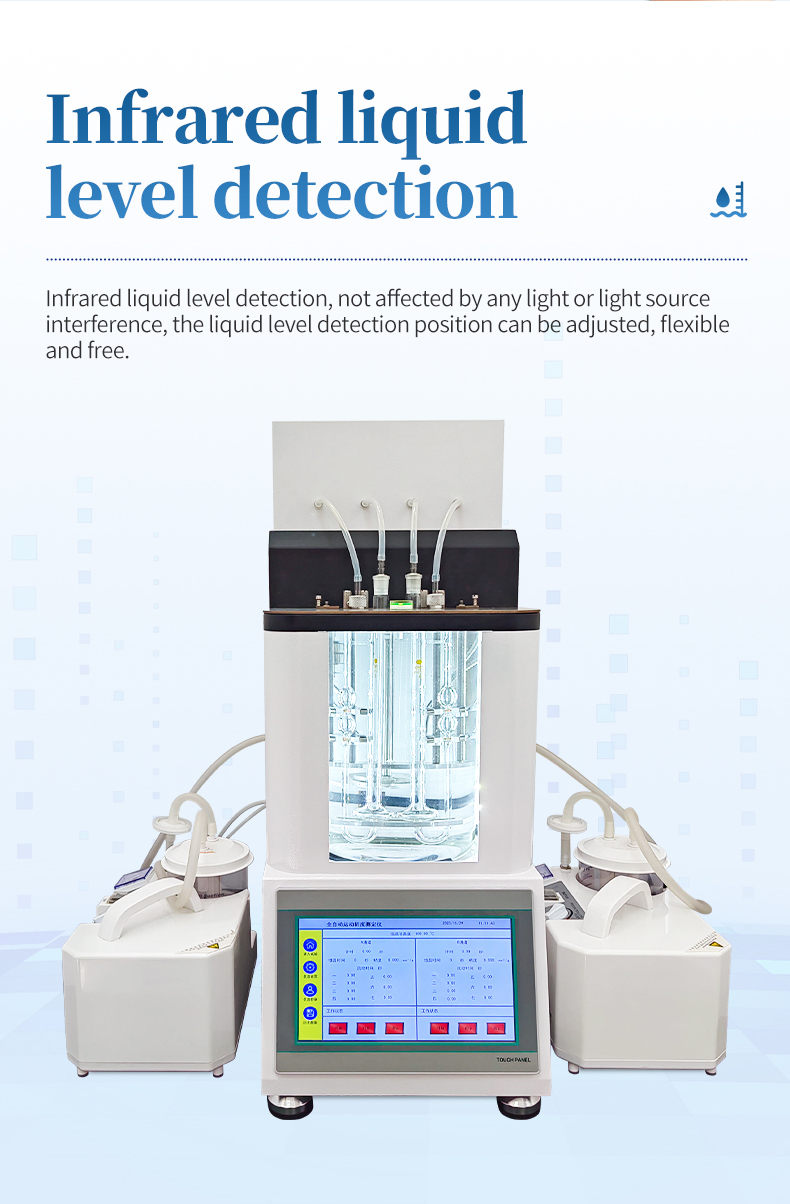

3. Infrared liquid level detection is not affected by any light or light source interference, and the liquid level detection position can be adjusted flexibly.

4. Adopting imported detection modules to detect circuits, the detection is fast and accurate, completely avoiding false positives and omissions.

5. Imported temperature sensors from Germany, with sensitive response and higher temperature control accuracy.

6. Fully automatic constant temperature, oil sample suction, viscosity detection, calculation, printing, viscosity tube cleaning, drying viscosity tube, no manual operation required. The instrument automatically completes all processes and saves the results automatically.

7. Two sets of viscosity tubes can be tested simultaneously, greatly improving work efficiency and saving experimental time.

8. Users can choose refrigeration equipment to measure low-temperature viscosity.

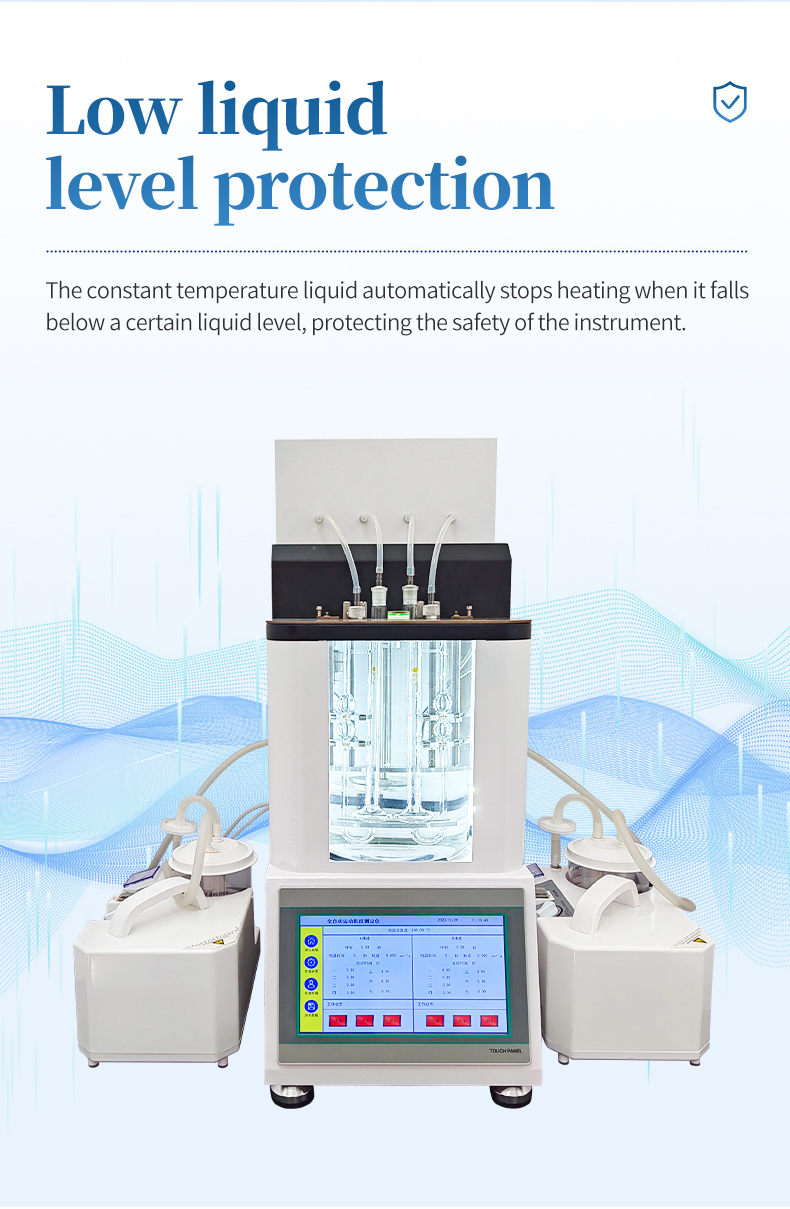

9. Equipped with low liquid level protection function, the constant temperature liquid automatically stops heating when it drops below a certain level, protecting the safety of the instrument.

10. Built in thermal printer, automatically prints test results.

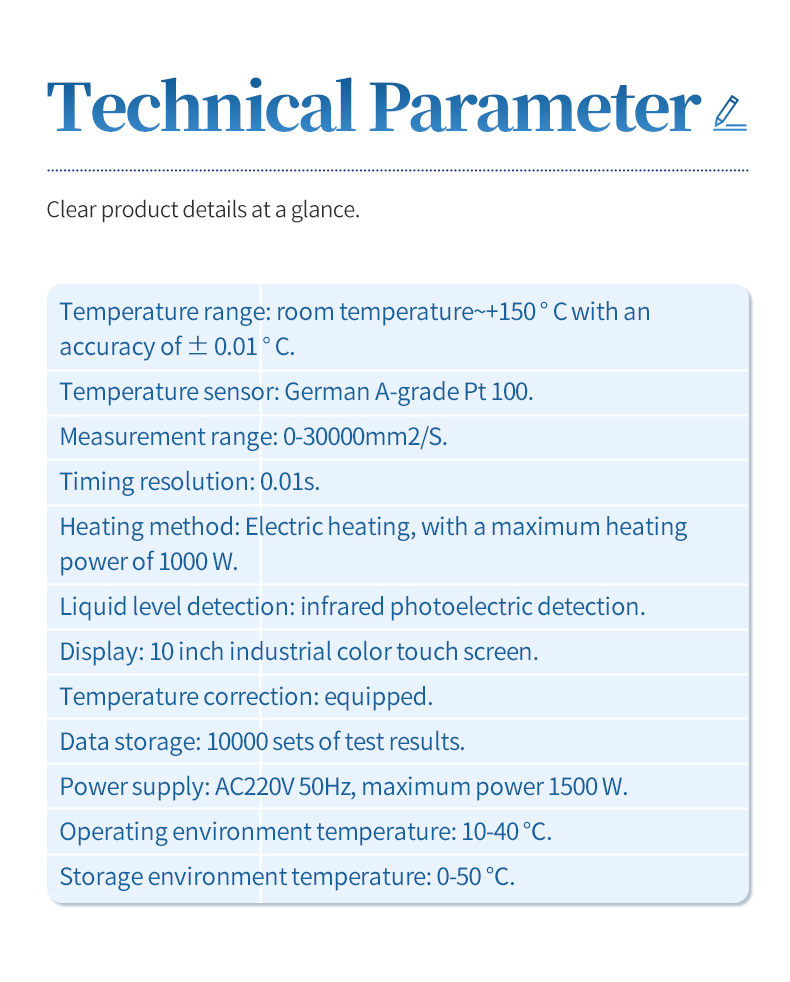

Technical Specifications

1. Temperature range: Room temperature to+150 ° C with an accuracy of ± 0.01 ° C.

2. Temperature sensor: German A-grade Pt 100.

3. Measurement range: 0-30000mm2/S.

4. Timing resolution: 0.01s.

5. Heating method: Electric heating, maximum heating power of 1000 W.

6. Liquid level detection: infrared photoelectric detection.

7. Display: 10 inch industrial color touch screen.

8. Temperature correction: available.

9. Data storage: 10000 sets of test results.

10. Power supply: AC220V 50Hz, maximum power of 1500 W.

11. Operating environment temperature: 10-40 ℃.

12. Storage environment temperature: 0-50 ℃.
