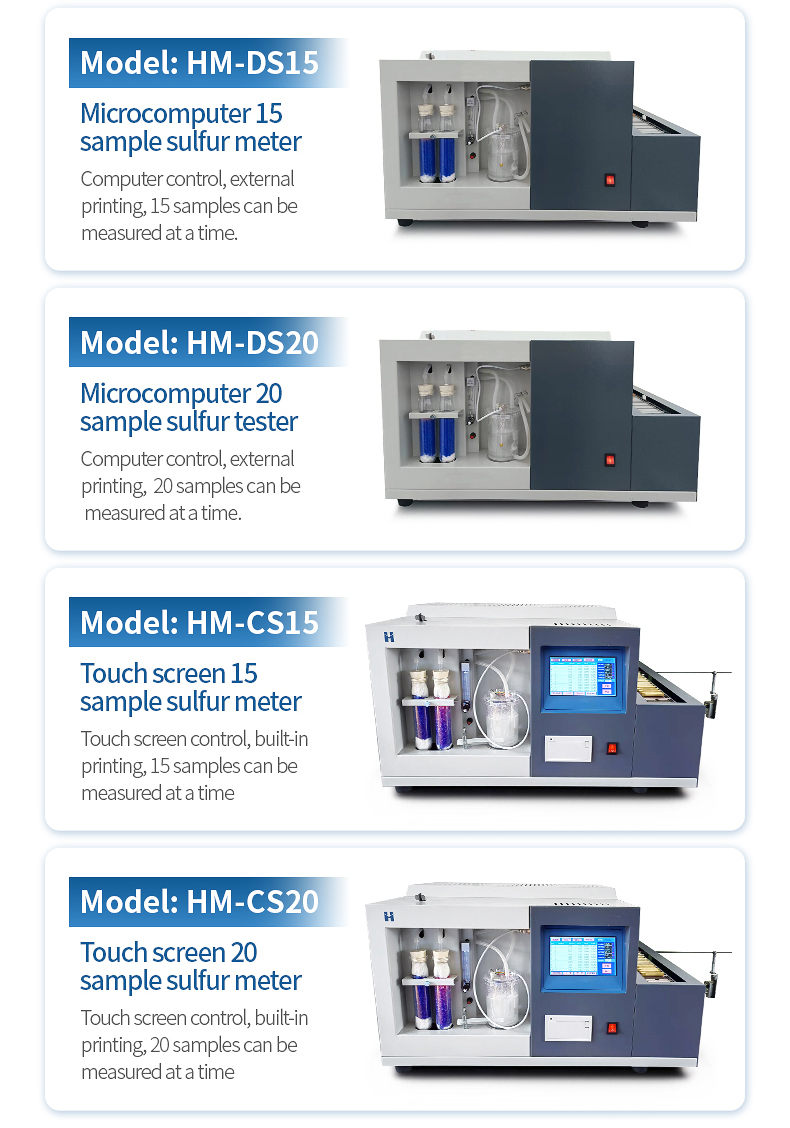

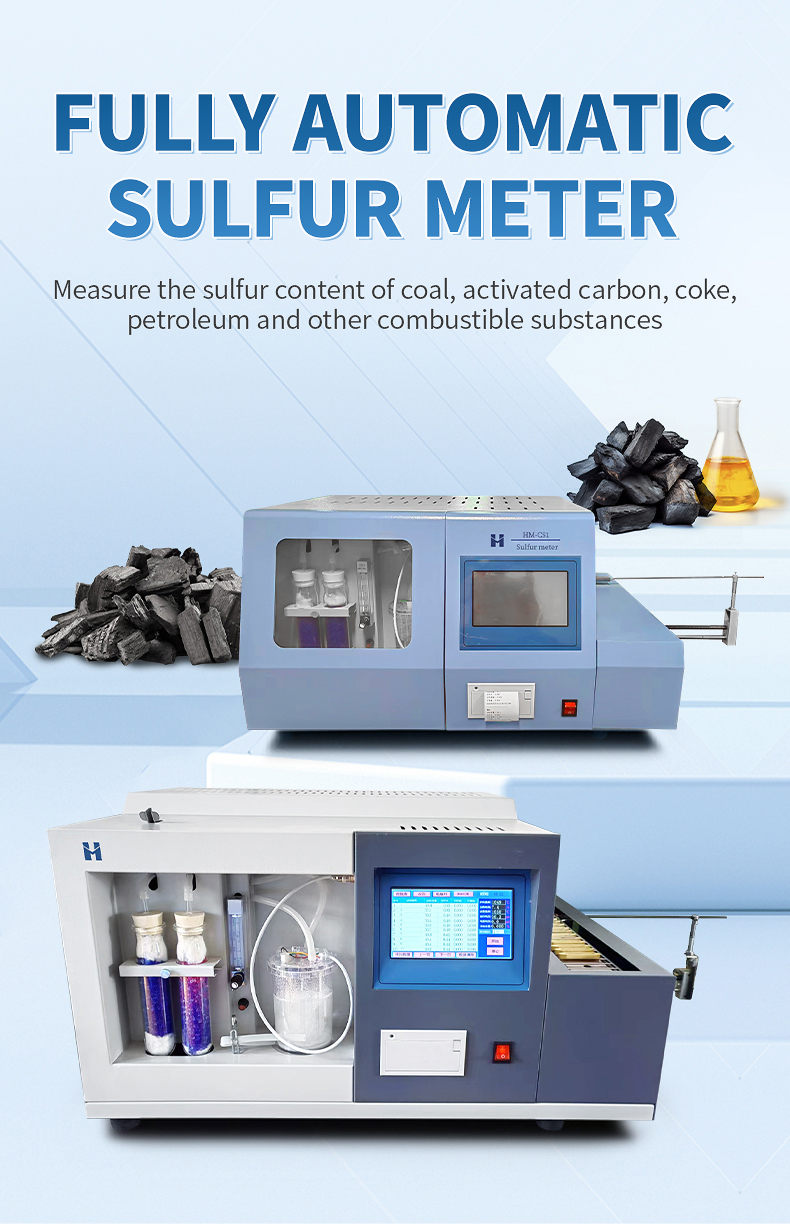

Fully Automatic and Diversified Sulfur Analyzer HM-DS20

This fully automatic and versatile sulfur analyzer uses a dedicated ceramic boat. It can hold 1-20 samples at once and add unlimited follow-up samples after starting the experiment, making the operation process very simple and easy. The extremely low failure rate makes your laboratory test very worry free and convenient.

Overview of System Functions

1. The system is mainly used to measure the sulfur content of combustible substances such as coal, activated carbon, coke, and petroleum.

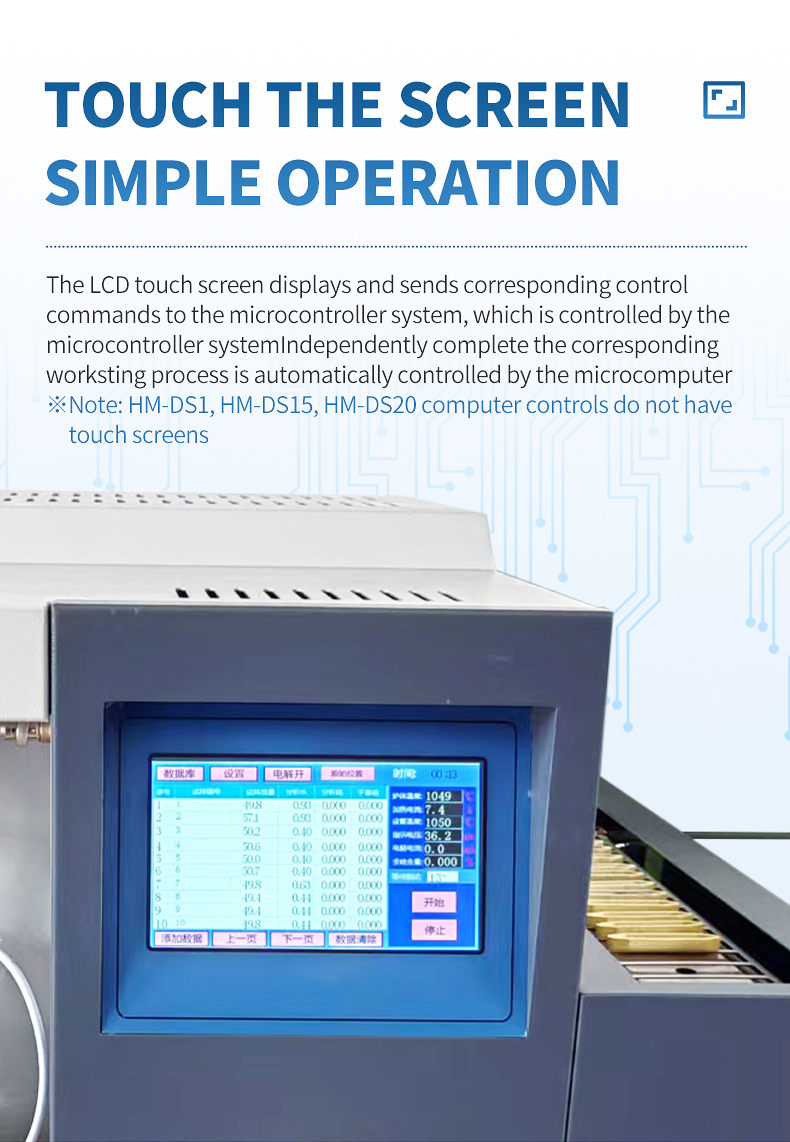

2. The entire testing process is automatically completed by microcomputer control.

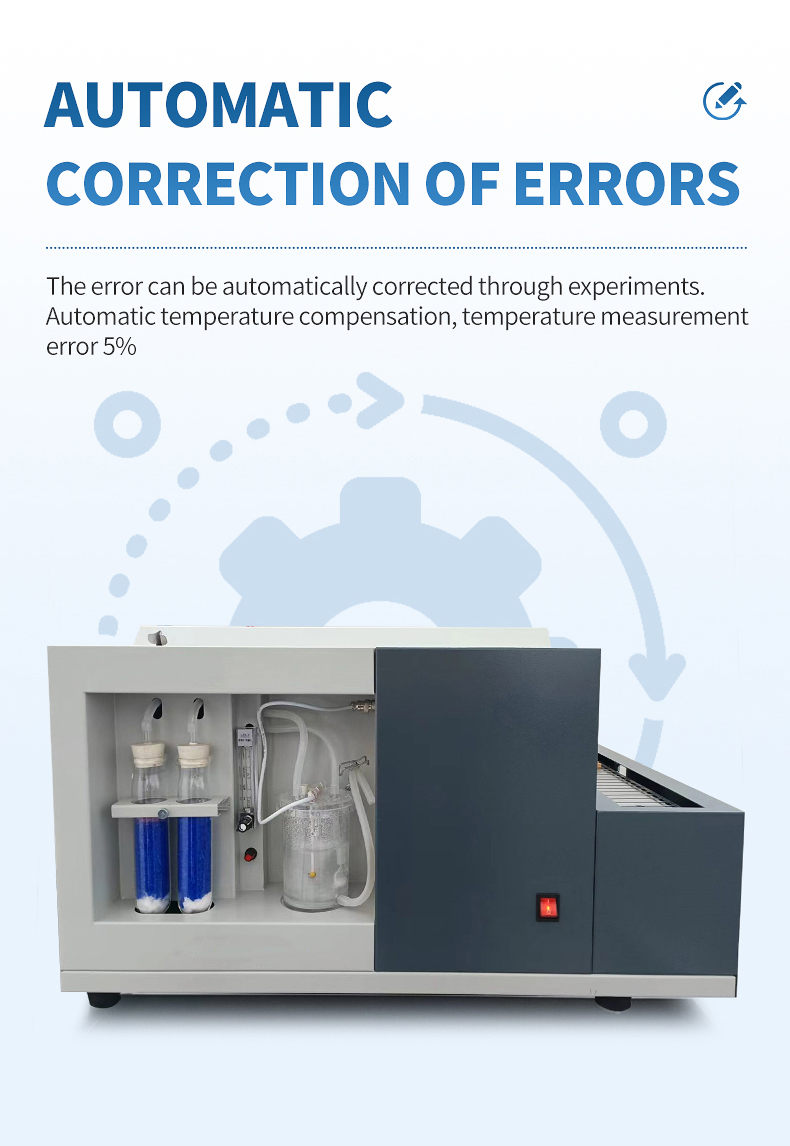

3. Errors can be automatically corrected through experiments.

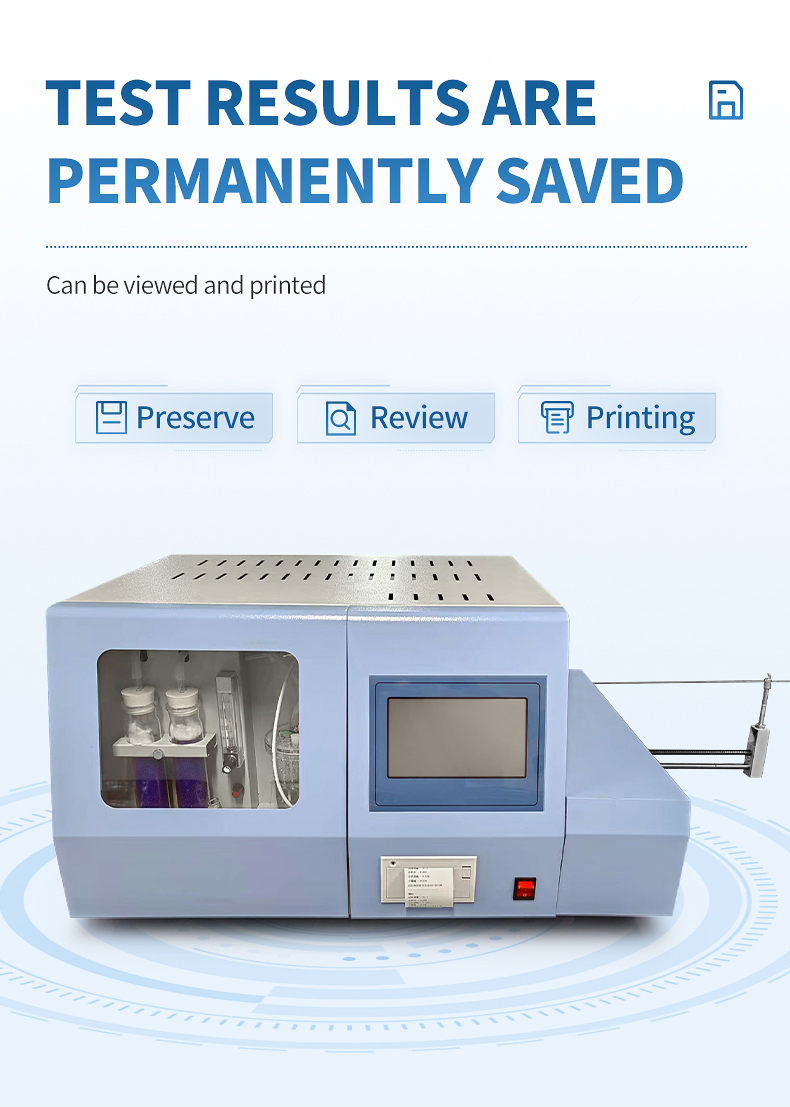

4. The test results are permanently saved and can be viewed and printed.

5. Automatic temperature compensation, with a temperature measurement error of 5%.

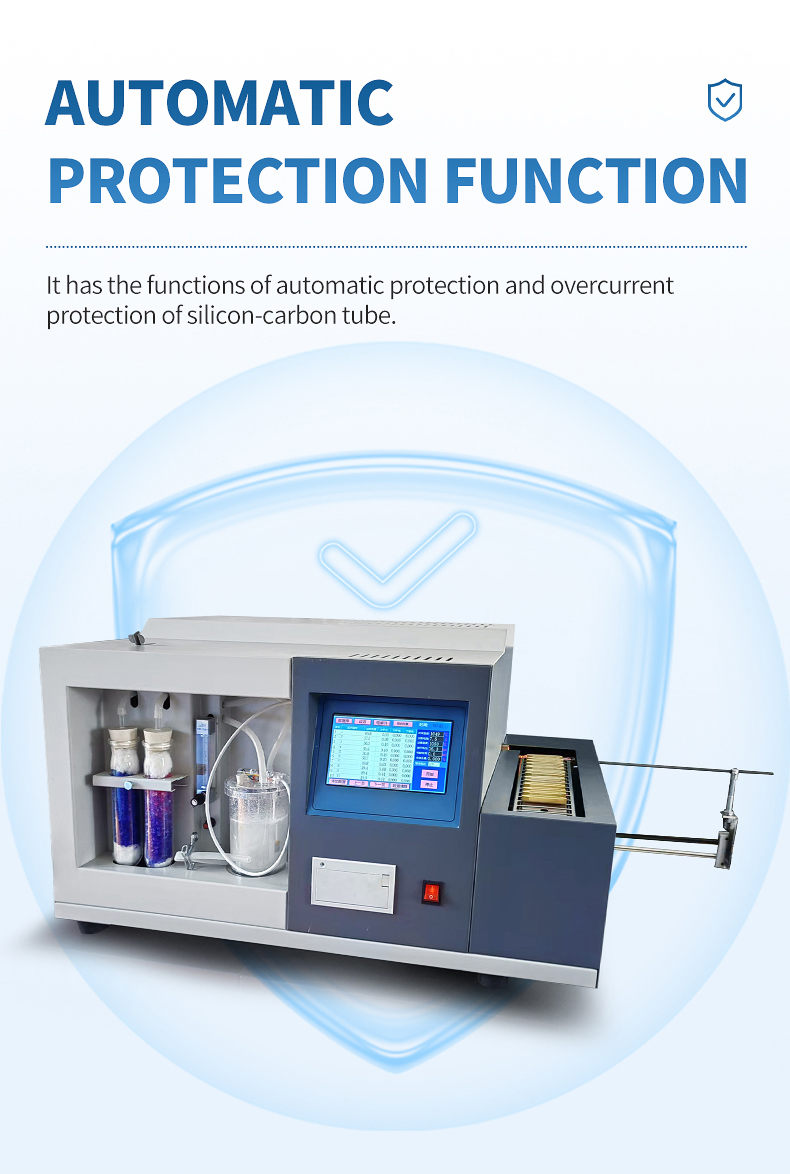

6. It has functions such as automatic startup protection and overcurrent protection for silicon carbon tubes.

7. Sample quantity: 1-15 pieces/time (can be added continuously at any time).

8. Power supply: AC (220 ± 22) V, 50HZ. Power: ≤ 3KW.

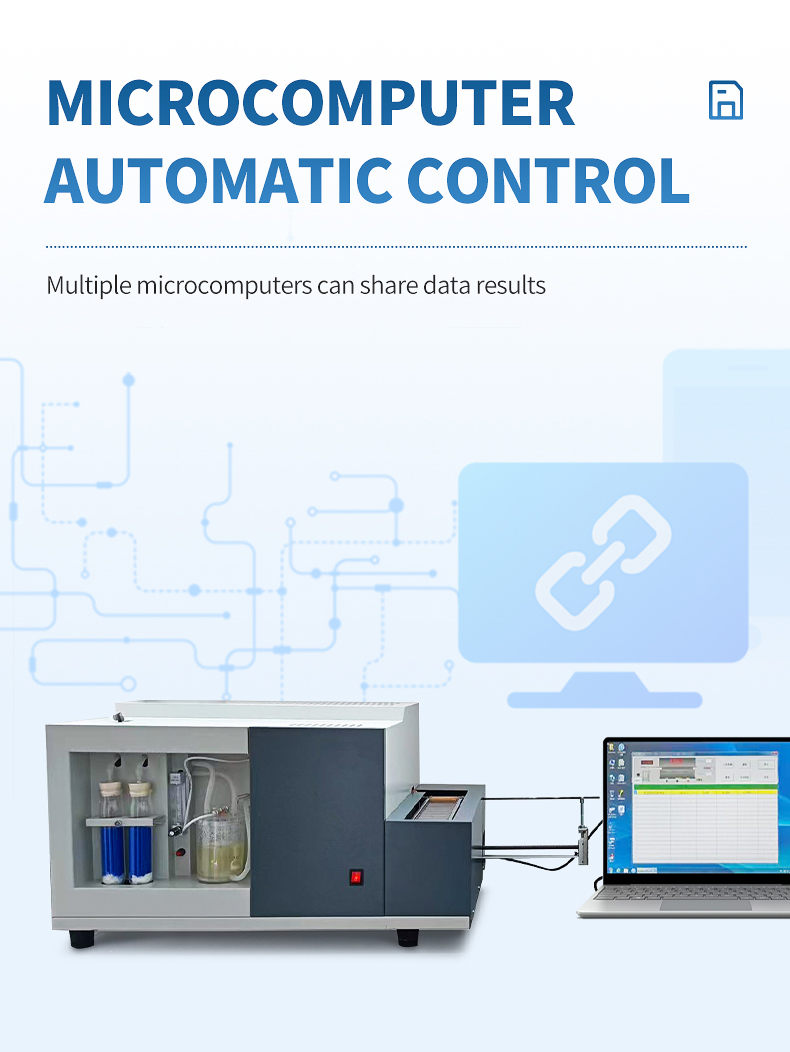

9. Multiple microcomputers can share data results.

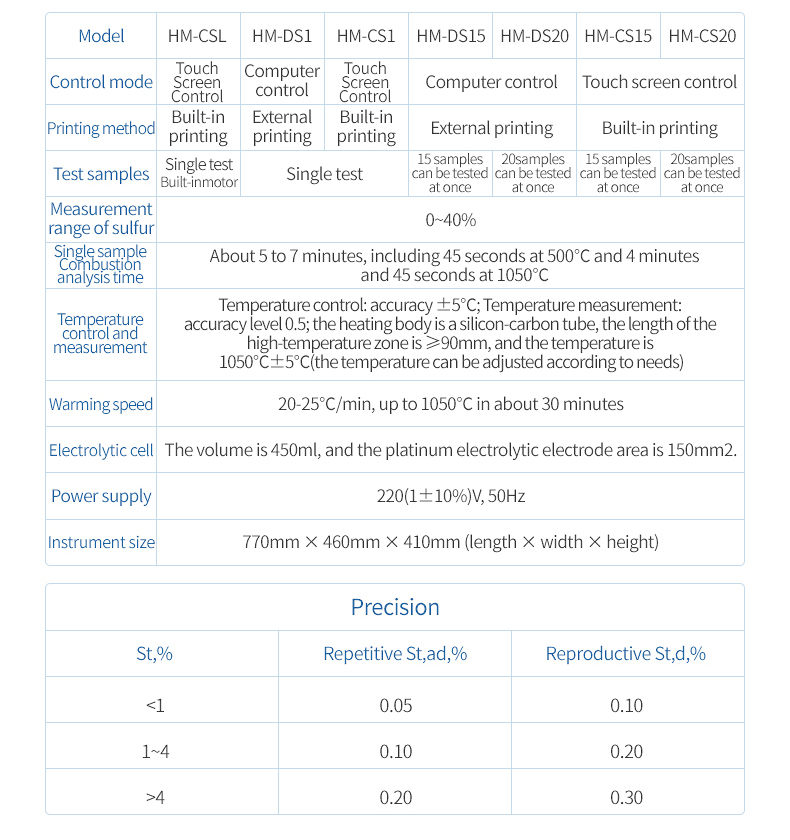

Main technical indicators

1. The measurement range of sulfur is 0-40%

2. Single sample combustion analysis time: about 5-7 minutes, including 45 seconds at 500 ℃ and 4 minutes and 45 seconds at 1050 ℃.

3. Temperature control: accuracy ± 5 ℃. Temperature measurement: accuracy level 0.5; The heating element is a silicon carbon tube, with a high temperature zone length of ≥ 90 millimeters and a temperature of 1050 ℃± 5 ℃ (temperature can be adjusted as needed)

4. Density: As specified in the table below:

5. Heating rate: 20-25 ℃/min, can reach 1050 ℃ in about 30 minutes.

6. Electrolytic cell: with a volume of 450 milliliters and a platinum electrolysis electrode area of 150mm2.

7. Power supply: 220 (1 ± 10%) V, 50Hz

8. Instrument dimensions (mm) length x width x height (770 x 460 x 410)
