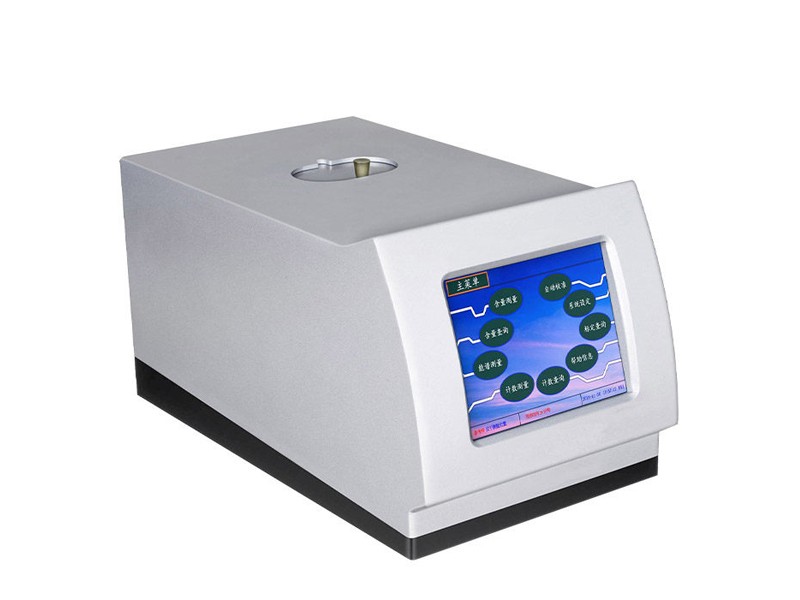

High-Frequency Infrared Carbon Sulfur Analyzer HM-CS
+86
17853698681Product details
Product Overview
The HM-CS from HM Instruments is an integrated high-frequency infrared carbon and sulfur analyzer for solid materials. Samples are combusted in a high-frequency furnace, and the resulting carbon dioxide and sulfur dioxide are measured by infrared absorption to determine carbon and sulfur content.
Key Features
- Integrated furnace, gas-path, electronics and infrared-measurement modules support a compact system arrangement.
- Software-controlled programmed heating adapts the combustion process to the sample.
- Pressure and flow control, multistage filtration and dehydration support stable gas delivery to the infrared cells.
- Automatic reverse purging and dust removal reduce combustion-dust accumulation.
- Single-point and multipoint calibration, curve comparison and stored records support routine quality control.
Applications
Applications include steel, iron, alloys, ferrous and nonferrous metals, rare-earth materials, coal, cement, ores, glass and suitable new-energy materials. Select sample mass, combustion conditions and reference materials for the matrix and expected carbon or sulfur content. The sample-preparation route is intended for compatible solids.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement principle | High-frequency combustion with CO₂/SO₂ infrared absorption |
| Nominal carbon range | 0.00005–15% |
| Nominal sulfur range | 0.00005–5% |
| Minimum readout | 0.00001% |
| Carbon precision on solid reference materials | 1 ppm or RSD ≤0.5%; either criterion |
| Sulfur precision on solid reference materials | 1 ppm or RSD ≤1.0%; either criterion |
| Typical analysis time | 20–40 seconds |
| Electronic-balance weighing precision | 0.0001 g |
| Furnace power-tube input rating | 3.5 kW |
| Host dimensions | 590 × 640 × 870 mm (W × D × H) |
| Host weight | 130 kg |
Operation and Selection
An electronic balance is included in the stated configuration. Automatic vacuum dust extraction is optional. Discuss the furnace-cleaning arrangement and accessories for the intended workload when requesting a configuration. Select certified reference materials and appropriate combustion aids for the sample matrix; prepare and calibrate the system according to the operating procedure.
Product Enquiries
Tell our sales representative your sample material, required method and configuration needs for product enquiries and coordination of service requests.
