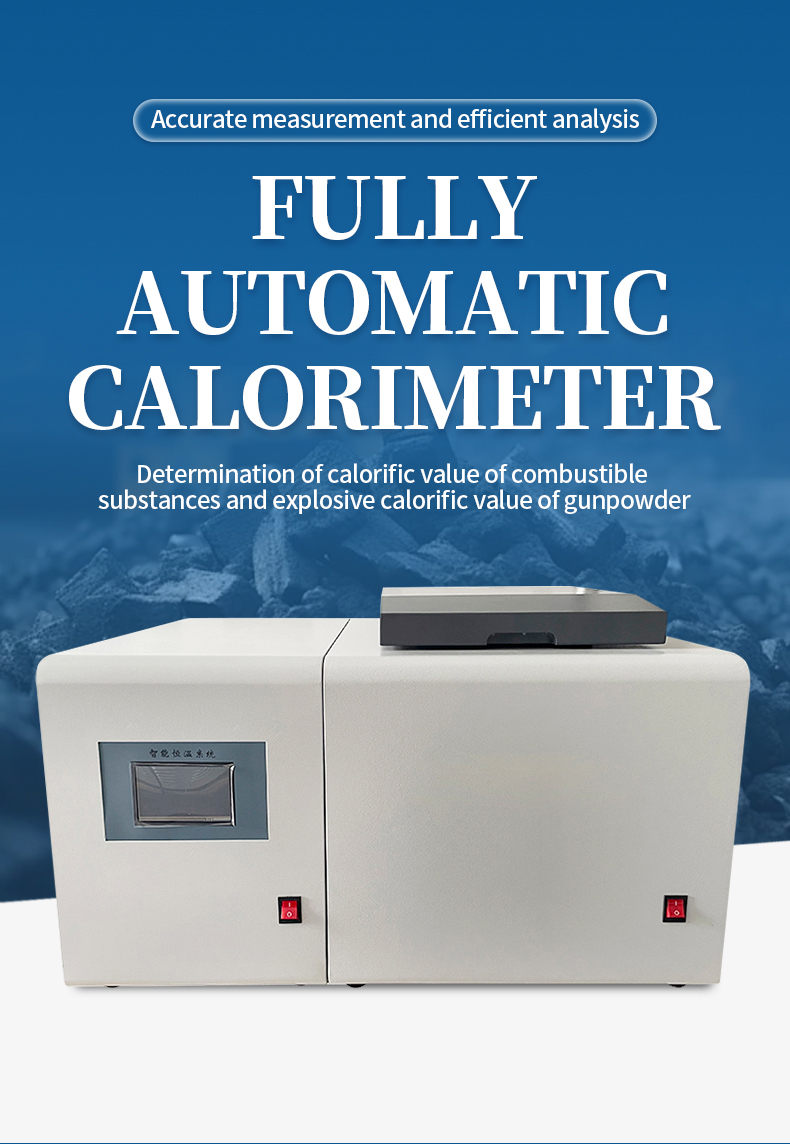

Oxygen Bomb Calorimeter HM-LR1

Scope of Application

Suitable for enterprises, colleges, research departments, and military units engaged in the production, research, and use of combustible materials to determine the calorific value of coal, coke, chemical industry, grain, wood, feed, and the explosive calorific value of gunpowder.

Features

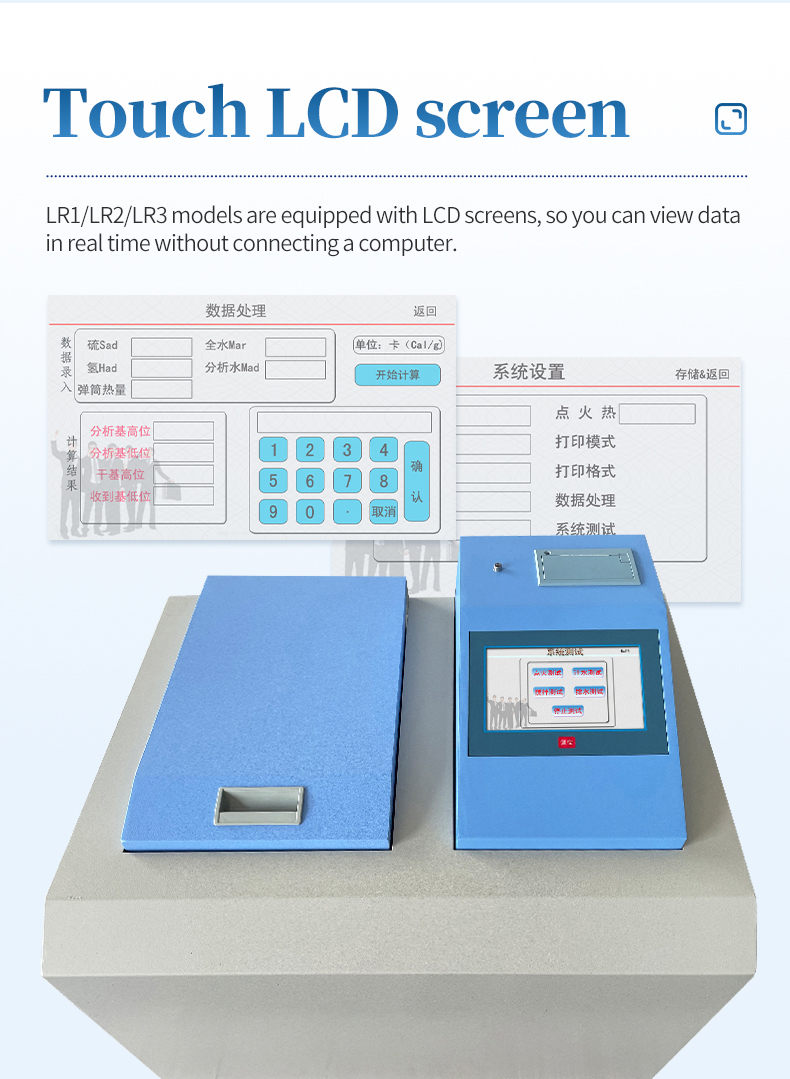

Adopting advanced technology from the United States, the 5.7-inch touch LCD screen is installed in an integrated manner to ensure the firmness of the touch screen. Infrared technology, using CRT display materials to make the touch screen more durable. Multi layer composite film coverage ensures optimal color distortion, reflectivity, and clarity, with sensitive sensing and high positioning accuracy. The effective coverage area is up to 90% wear-resistant, with a lifespan of up to 10 years. It displays Chinese characters without the need for an external computer. You can directly operate it.

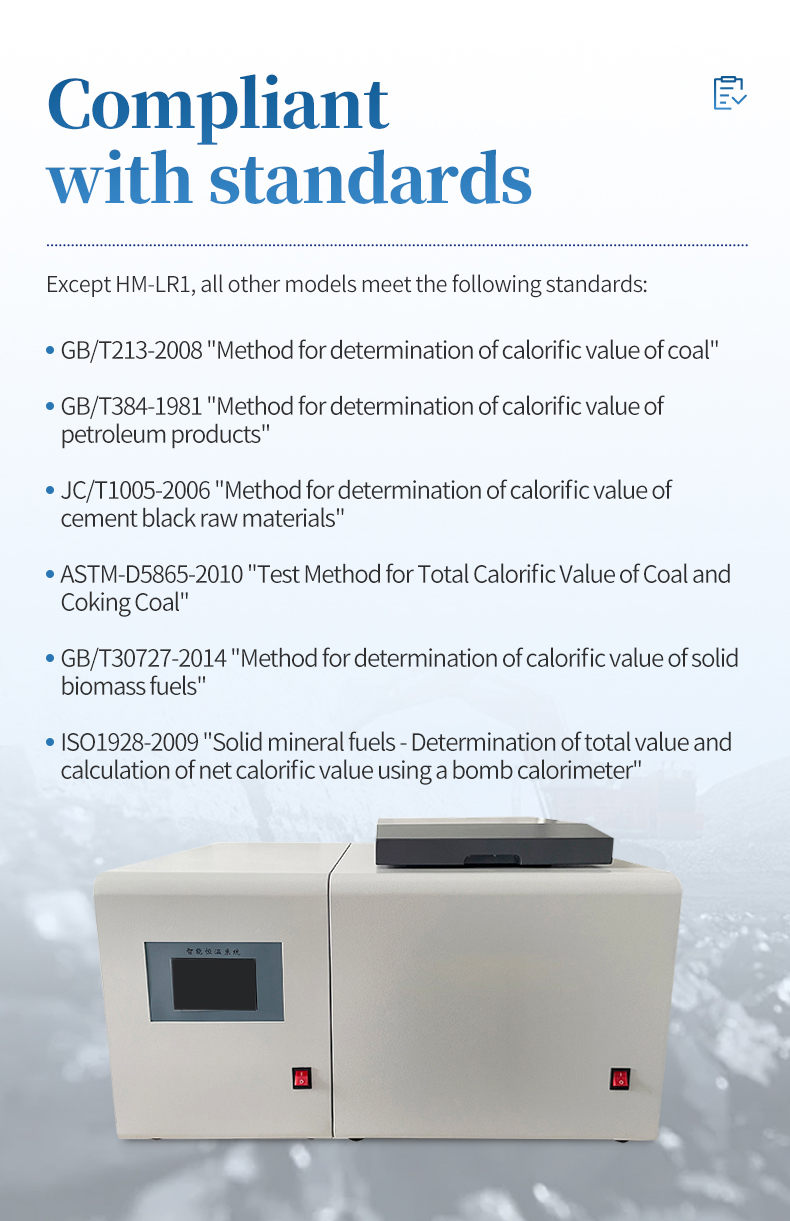

The repeatability and reproducibility of the calorific value test are superior to the requirements of the national standards GB/T 384 "Determination of Calorific Value of Petroleum Products" and GB/T213-2008 "Determination of Calorific Value of Coal".

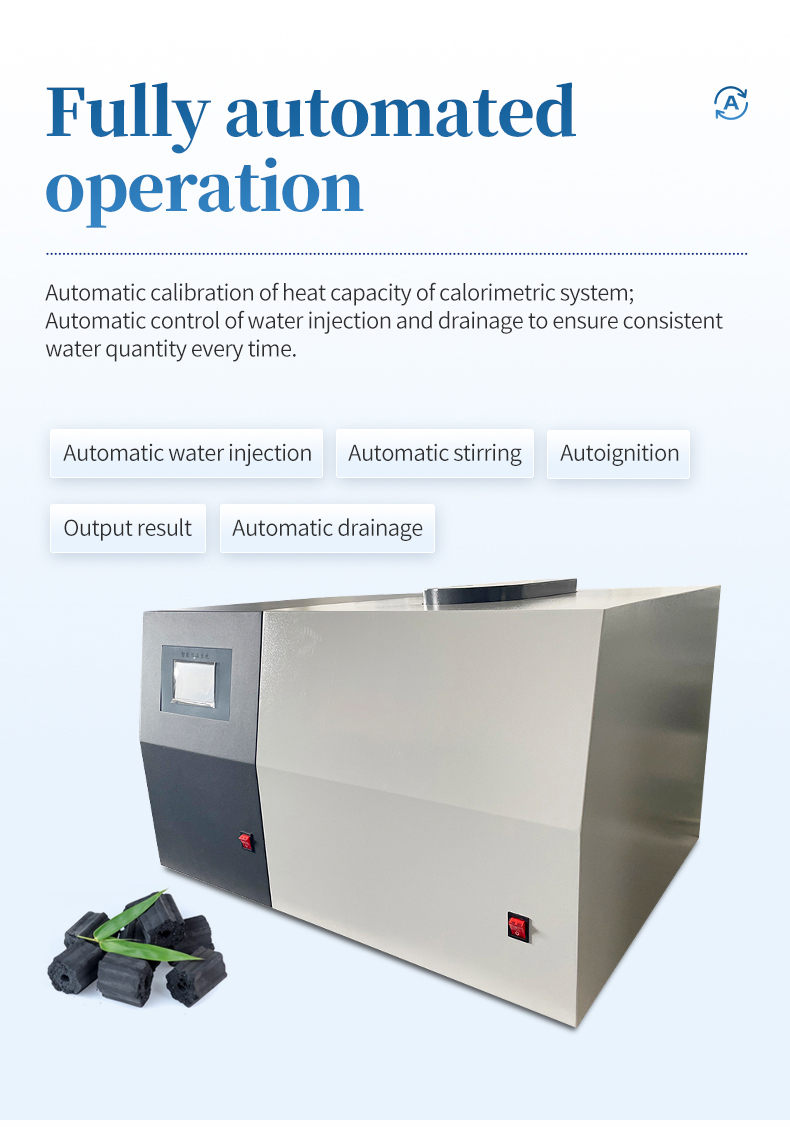

Automatic water injection, no need to adjust the water temperature, just install an oxygen bomb and put it into the bucket, and the instrument can automatically complete all tests. Reasonable structure, excellent production, reliable performance, and low failure rate.

The results are accurate, and a unique cooling correction is adopted to ensure the long-term stability of the instrument performance.

Easy to learn, user-friendly interface, good software fault tolerance, easy to learn and use.

Make the operation simpler and more user-friendly.

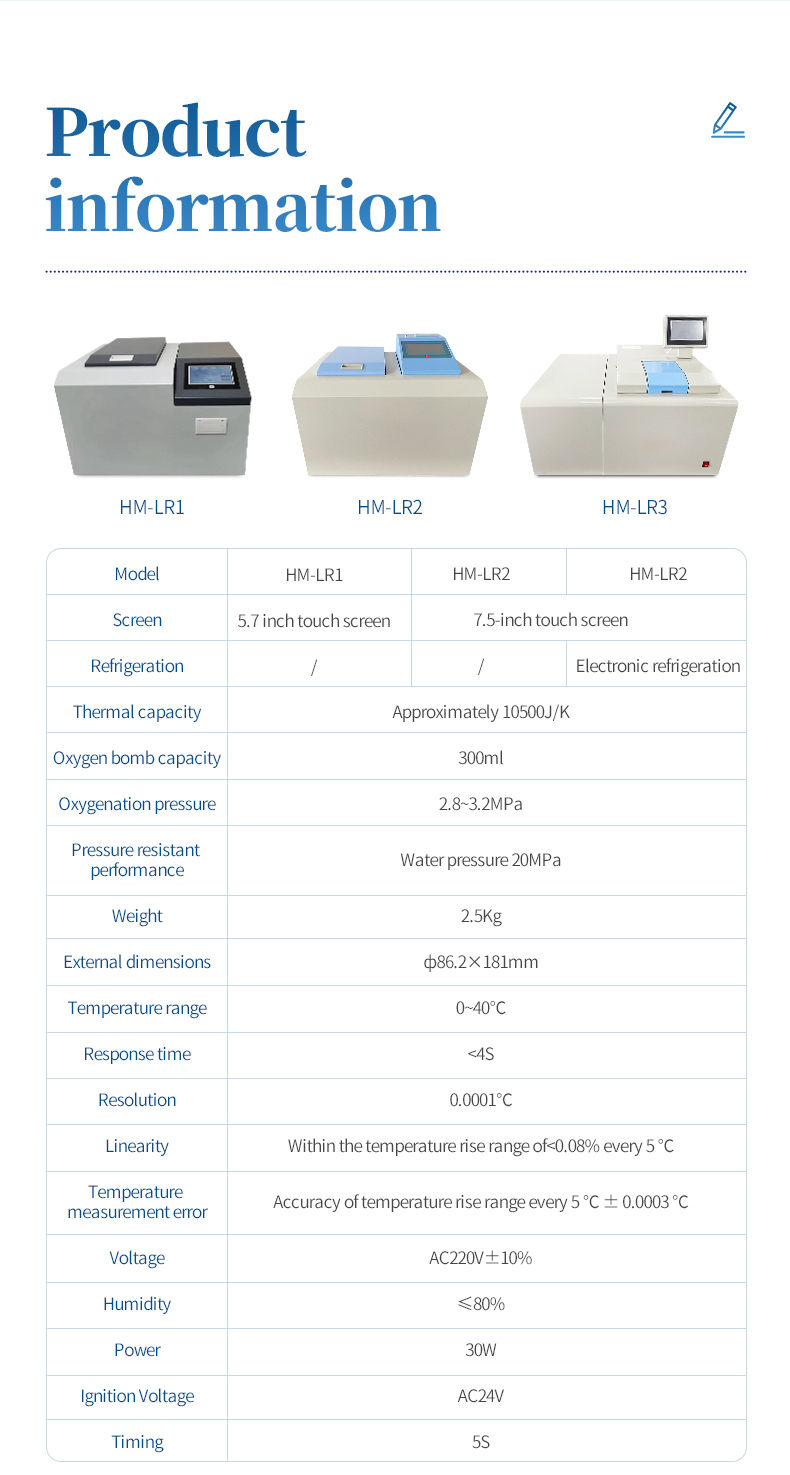

Technical Specifications

The indoor temperature change during each test shall not exceed 1K, there shall be no strong airflow or direct sunlight indoors, the relative temperature shall not exceed 80%, the heat capacity shall be 10500J/K, and the ambient temperature shall be 5-35 ℃

Ignition voltage: 24V Ignition time: 5 seconds

Temperature measurement range: (0-40) ℃ Temperature resolution: 0.0001K

Host power consumption: ≤ 80W Working power supply: AC 220V ± 22V, 50Hz ± 1Hz

Host weight: 35kg Host dimensions (mm): 420 × 600 × 470
