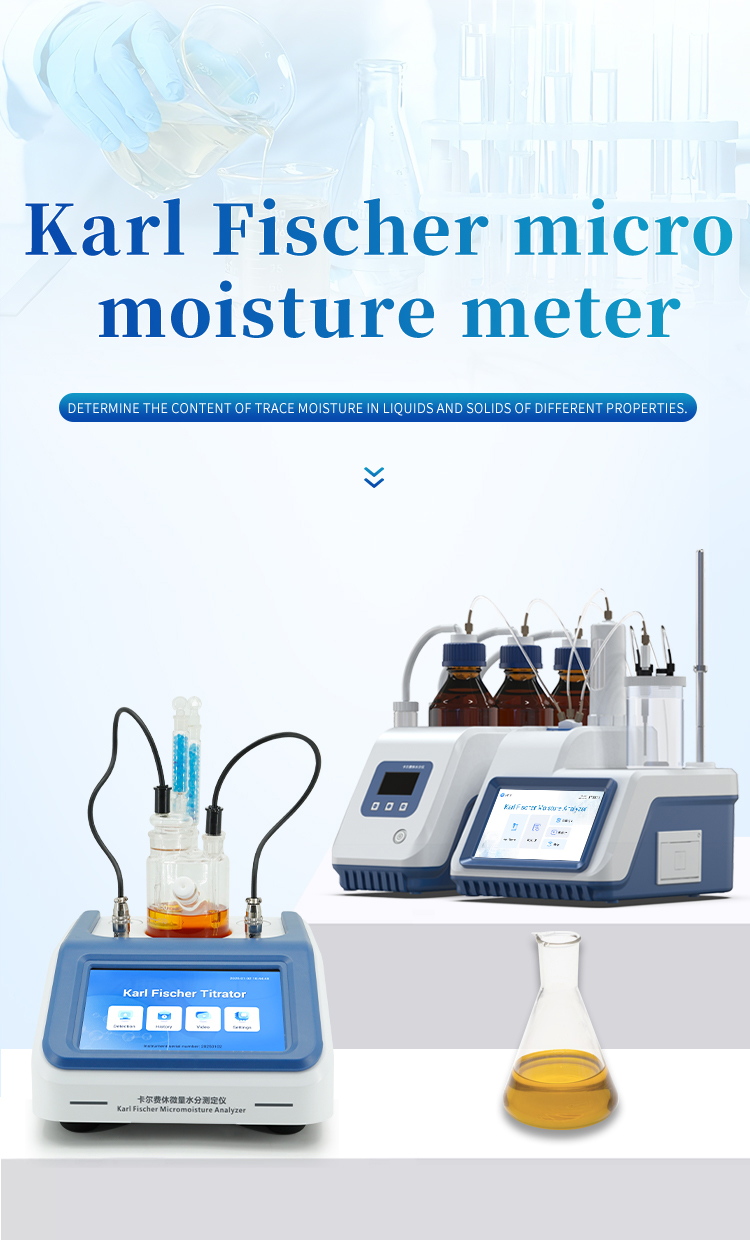

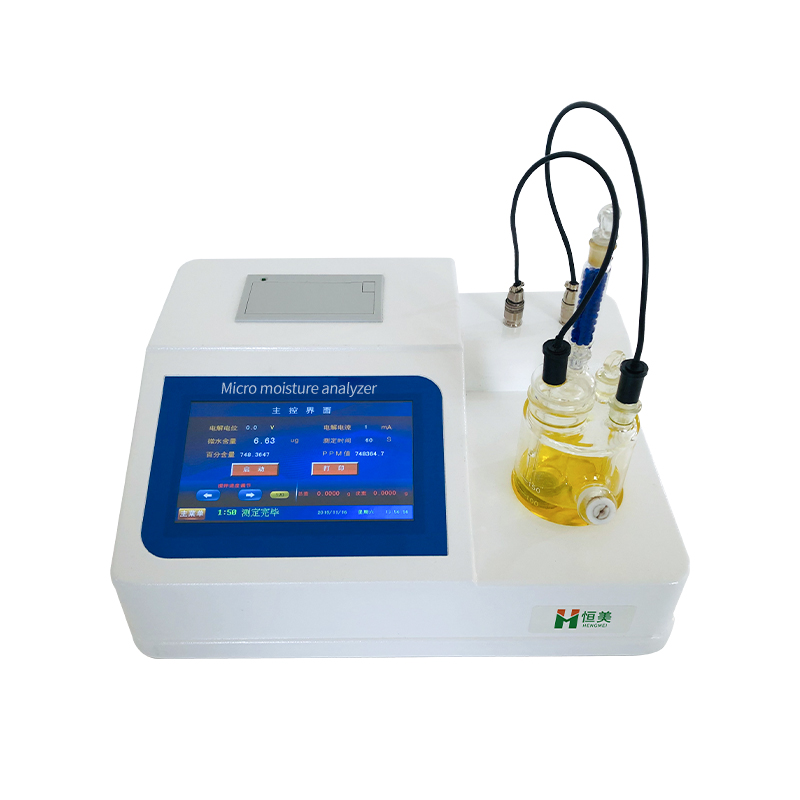

Portable Karl Fischer Coulometric Titrator for On-Site Petrochemical and Pharmaceutical Moisture Analysis HM-WS3

Product Introduction

Accurate moisture determination is a critical quality control parameter across petrochemical refining, pharmaceutical manufacturing, and food processing. In petroleum products, even trace water content can cause corrosion in pipelines and storage tanks, catalyze undesirable reactions during refining, and compromise fuel specifications. In pharmaceutical production, water content in active pharmaceutical ingredients (APIs) and excipients directly affects product stability, shelf life, and regulatory compliance with pharmacopeial standards. Traditional laboratory-based Karl Fischer titration requires dedicated bench space, trained analytical staff, and sample transport logistics that introduce delays — particularly problematic for time-sensitive production batch releases and incoming material acceptance decisions.

The HM-WS3 addresses these operational challenges by delivering Karl Fischer coulometric moisture determination in a 2 kg portable form factor. Powered by an ARM Cortex-A7 quad-core processor (RK3288, 1.88 GHz) running the Android operating system, the instrument provides an intuitive 7-inch LCD touchscreen that simplifies operation for personnel without specialized analytical training. The fully sealed titration cell completes detection in approximately 60 seconds with automatic endpoint determination, enabling rapid throughput for batch testing scenarios.

For petrochemical operations, the HM-WS3 supports both volumetric and gravimetric sample introduction methods, accommodating the diverse viscosity and volatility characteristics of crude oil fractions, lubricants, solvents, and chemical intermediates. For pharmaceutical applications, the instrument's configurable detection parameters — electrolysis current, voltage, water content threshold, and maximum analysis time — allow method customization to match specific pharmacopeial requirements. Sample identification fields including name, batch number, unit, and operator are freely editable, supporting full traceability in GMP environments.

Data management is integrated directly into the instrument workflow: a built-in thermal printer generates QR-coded detection reports on demand, Wi-Fi connectivity enables cloud upload and remote query for centralized quality monitoring, and over 200,000 records are stored via the standard USB interface. Directed remote firmware updates ensure the instrument stays current without the logistical burden of returning it to the manufacturer, minimizing downtime in continuous production environments.

Applications

• Petroleum refining: crude oil, fuel oil, lubricating oil, and transformer oil water content determination

• Chemical manufacturing: solvents, reagents, and intermediate products moisture analysis

• Pharmaceutical production: API and excipient water content testing for pharmacopeial compliance

• Food processing: moisture determination in ingredients, additives, and finished products

• Quality control laboratories: incoming material acceptance and batch release testing

• Coatings and adhesives: water content measurement affecting product performance and shelf stability

Key Features & Advantages

1. 2 kg portable form factor enabling on-site Karl Fischer coulometric moisture determination without sample transport

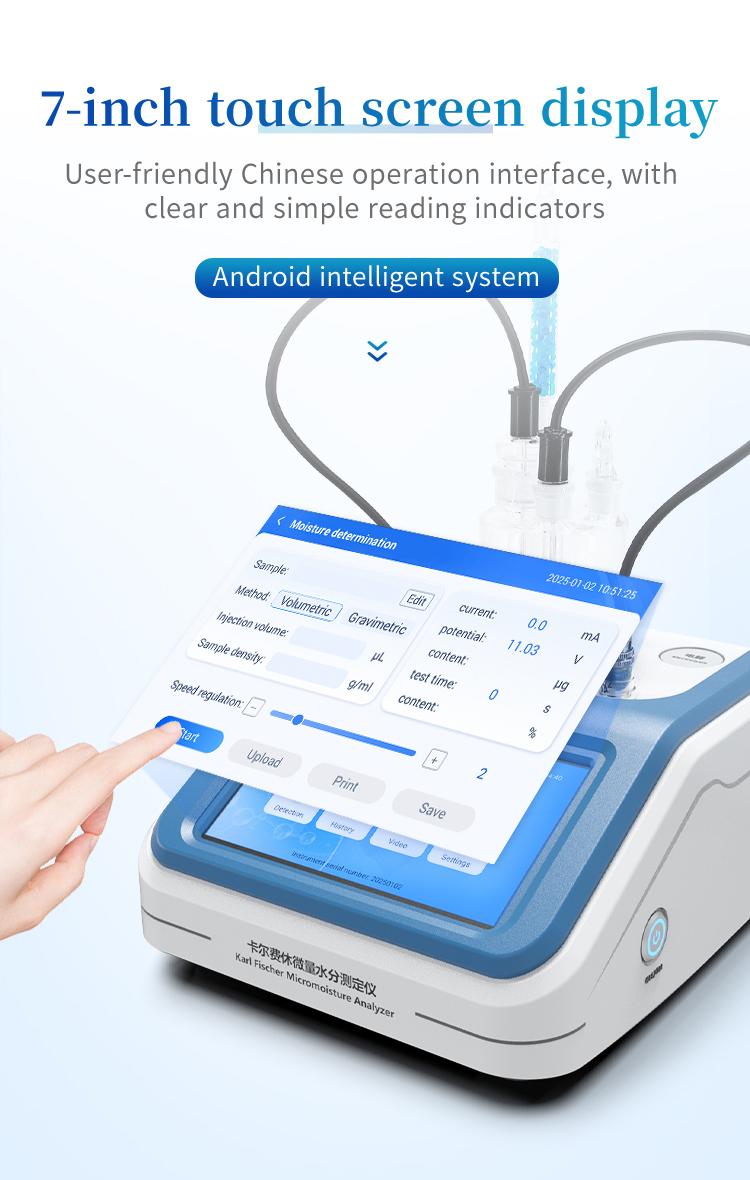

2. Android operating system with 7-inch LCD touchscreen for intuitive operation by non-specialist personnel

3. ARM Cortex-A7, RK3288 quad-core processor at 1.88 GHz for responsive instrument control and data processing

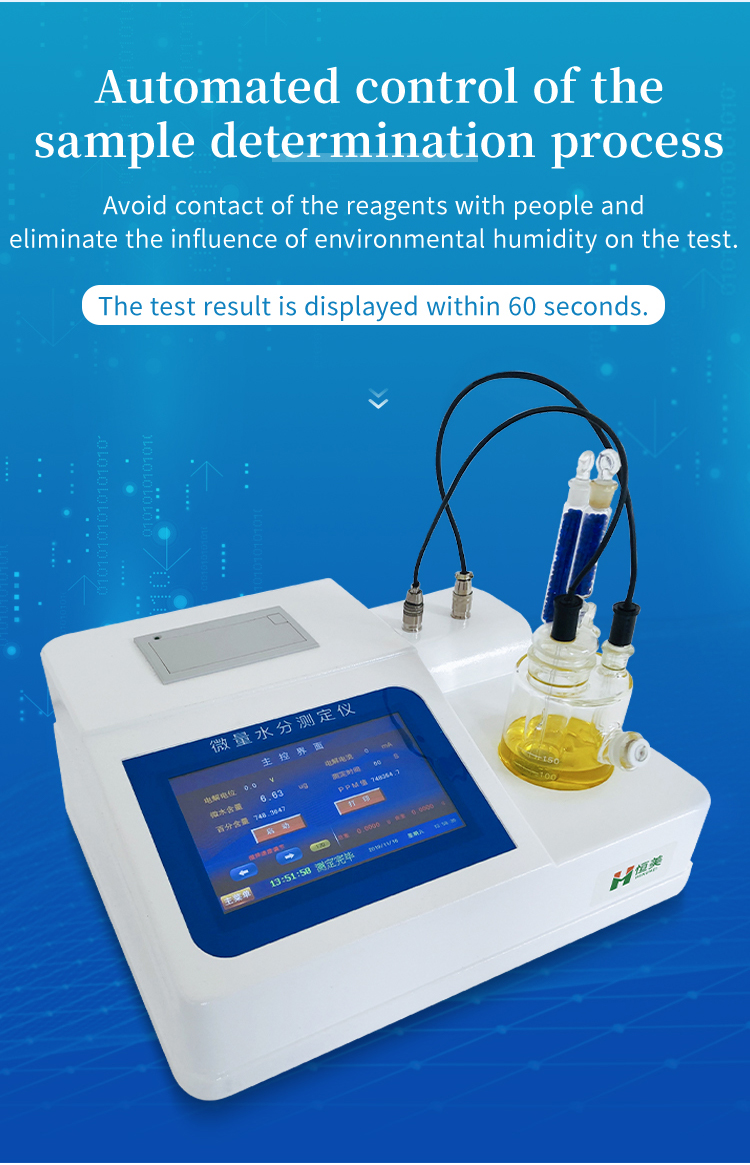

4. Fully sealed titration cell with approximately 60-second automatic detection and endpoint determination

5. Dual sample introduction methods — volumetric and gravimetric — selectable based on sample characteristics

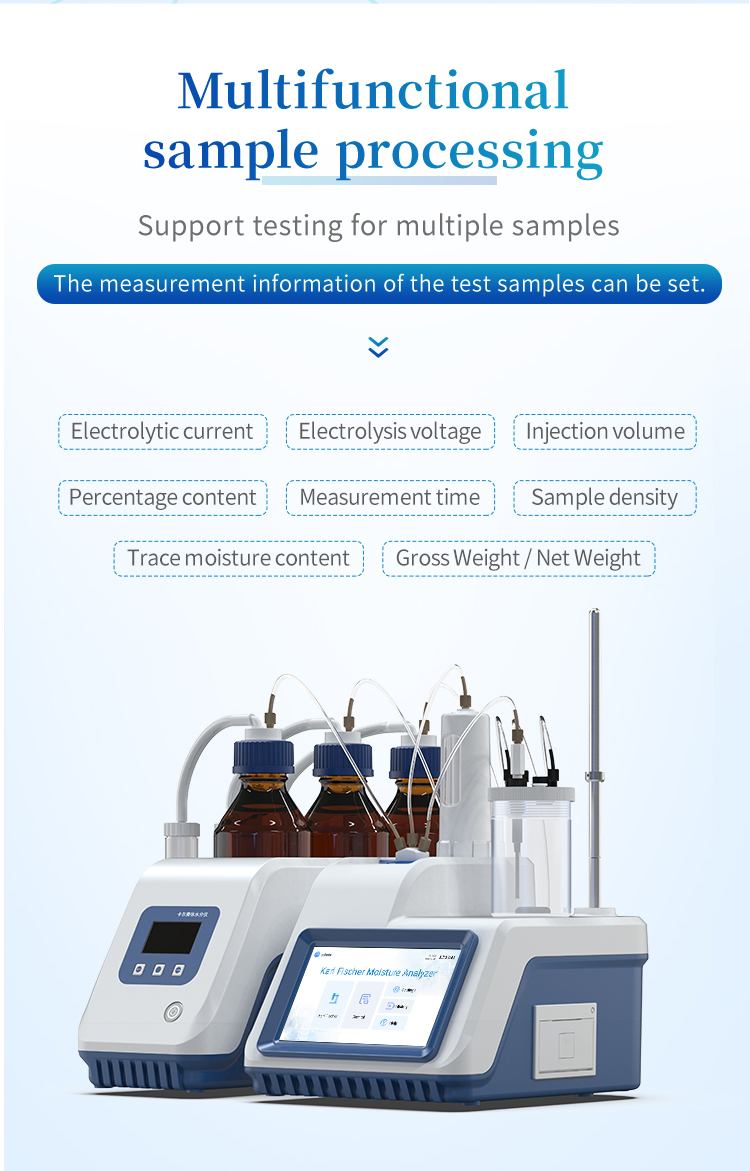

6. Configurable detection parameters: electrolysis current, voltage, water content threshold, and maximum analysis time

7. Customizable sample information fields (name, batch number, unit, operator) for GMP traceability

8. Built-in thermal printer with QR code generation for immediate on-site documentation

9. QR code scanning for instant mobile retrieval of analysis results

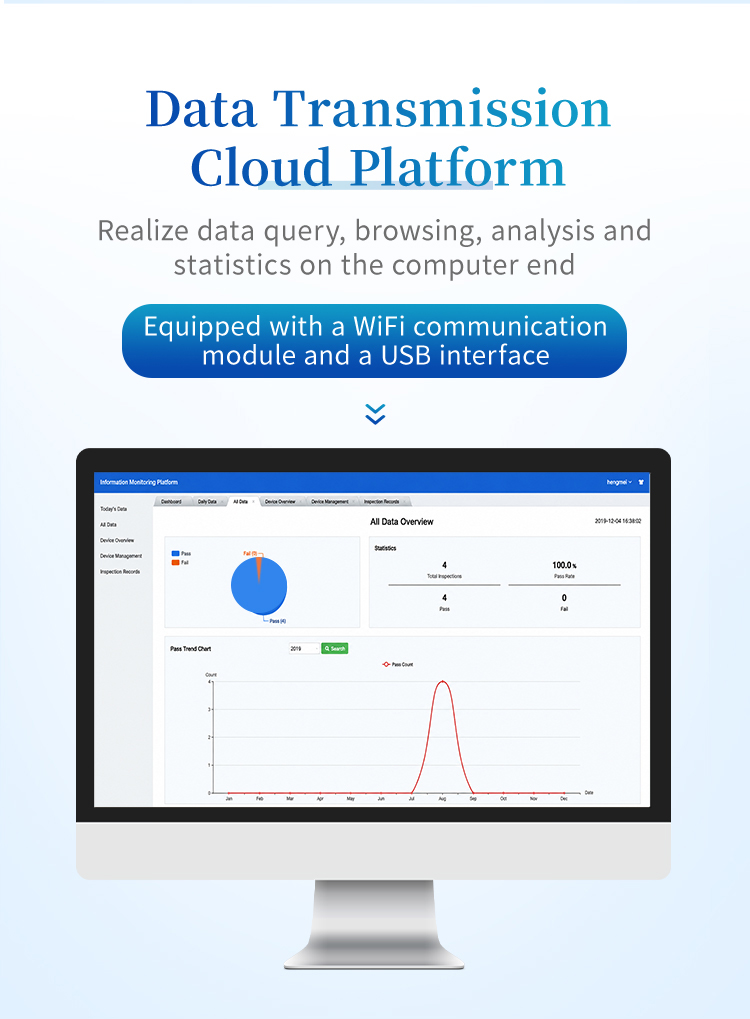

10. Wi-Fi module supporting cloud data upload and remote query for centralized quality monitoring

11. Directed remote firmware update capability eliminating factory return for software maintenance

12. Historical record search function for quick retrieval of past analysis data

13. Standard USB interface with 200,000+ record storage capacity for long-term data retention

14. Built-in operation video for direct on-instrument learning and training

15. Cycle detection mode supporting continuous repeated testing of multiple samples

16. Compliance with 19+ national standards for Karl Fischer coulometric moisture determination

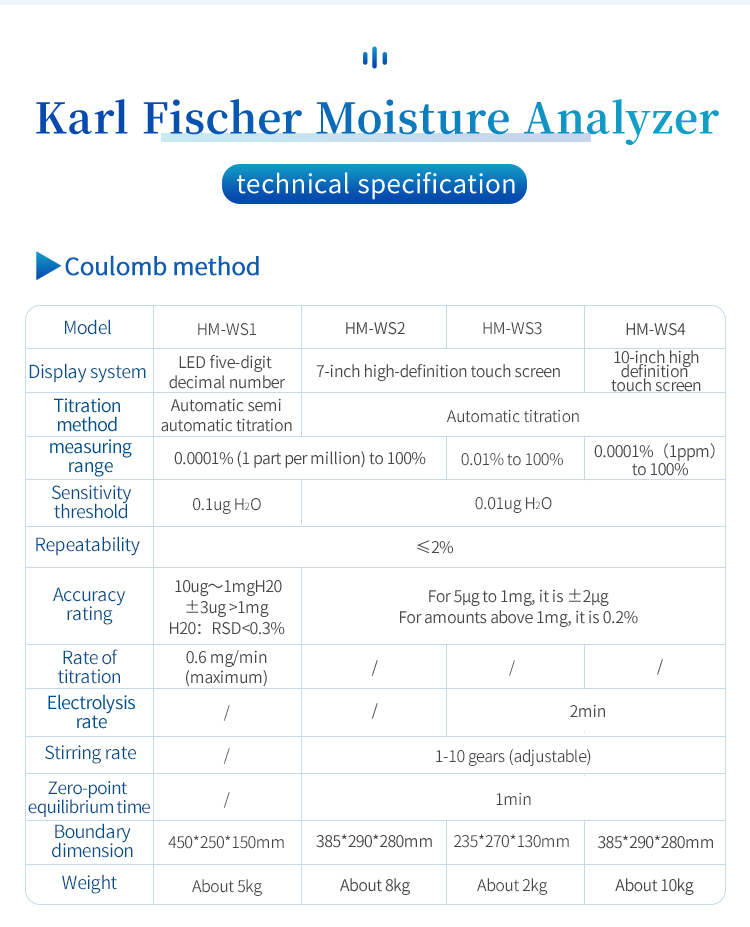

Technical Specifications

FAQ

Q1: How does the HM-WS3 handle different sample types in petrochemical moisture analysis?

The HM-WS3 supports both volumetric and gravimetric sample introduction methods, allowing operators to choose the approach that matches the sample's physical properties. Low-viscosity liquids such as solvents and light oils are well-suited to volumetric injection via syringe, while viscous or semi-solid samples like heavy lubricants can be introduced by gravimetric method using a sample boat. The instrument's configurable detection parameters — electrolysis current, voltage, and maximum analysis time — can be adjusted for each sample type to ensure accurate and reproducible results.

Q2: What are the advantages of the Android operating system for moisture analysis?

The Android OS provides a familiar touchscreen interface that reduces the learning curve for operators transitioning from other instruments. It enables built-in operation videos for on-instrument training, Wi-Fi cloud connectivity for data upload and remote query, and directed remote firmware updates without returning the instrument. The ARM Cortex-A7 quad-core processor (1.88 GHz) ensures responsive operation even during concurrent data processing and storage tasks.

Q3: Can the HM-WS3 be used for pharmaceutical GMP compliance testing?

The HM-WS3 supports pharmaceutical moisture testing with features that align with GMP documentation requirements. Customizable sample identification fields (name, batch number, unit, operator) enable full traceability. The built-in thermal printer generates QR-coded reports for immediate documentation, and over 200,000 records can be stored via the USB interface for audit trail purposes. The instrument complies with 19+ national standards, including those referenced in pharmacopeial moisture determination methods.

Q4: How does the QR code reporting feature work?

After each Karl Fischer coulometric determination, the built-in thermal printer can generate a detection report containing a QR code. Scanning this QR code with a mobile device retrieves the complete analysis result, including sample identification, water content value, and test parameters. This feature eliminates manual data transcription errors and provides instant digital access to results for quality control documentation and supervisory review.

Q5: What is the detection speed and how does the sealed titration cell contribute to accuracy?

The fully sealed titration cell completes automatic detection in approximately 60 seconds. The sealed design prevents ambient moisture ingress during analysis, which is critical for accurate low-level water content determination. The cell maintains a stable electrolysis environment, and the instrument automatically determines the endpoint when the electrolysis current drops below the configured threshold, ensuring consistent and objective results without operator judgment variability.

Q6: How does remote firmware update work, and why is it important?

The HM-WS3 supports directed remote firmware updates via its Wi-Fi connection. When a software update is available, it can be pushed to the instrument remotely, without the need to physically return it to the manufacturer. This is particularly important for instruments deployed in production environments or remote field locations where factory return would cause significant operational
