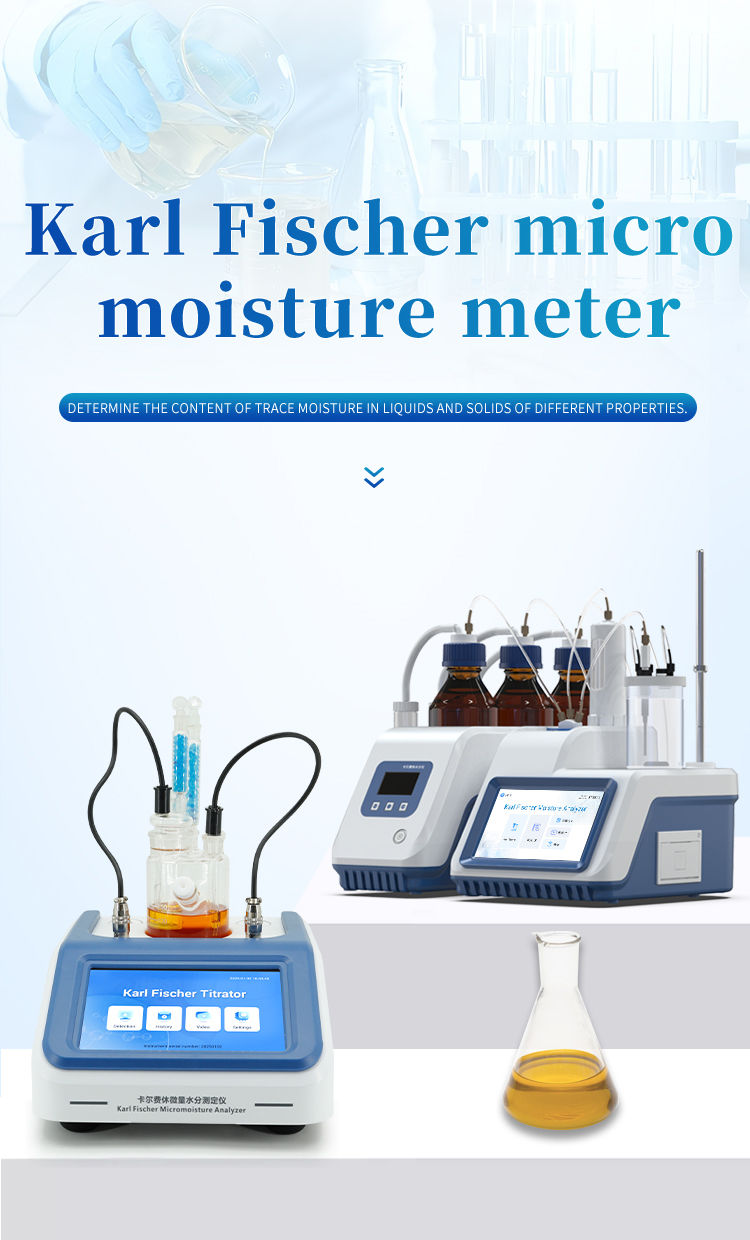

High-Precision Karl Fischer Coulometric Titrator for Trace Moisture Analysis in Quality Control Laboratories HM-WS4

Product Introduction

Trace moisture content is a critical specification parameter in pharmaceutical manufacturing, petrochemical refining, and electronic materials production. In pharmaceutical quality control, even minute quantities of water in active pharmaceutical ingredients can accelerate degradation pathways, reduce shelf life, and trigger out-of-specification results during stability testing. In the petrochemical sector, water contamination in insulating oils, solvents, and chemical intermediates compromises product performance, promotes corrosion, and can violate strict contractual specifications. For electronic-grade chemicals and specialty gases, water content at the parts-per-million level directly impacts semiconductor fabrication yields and product reliability.

The HM-WS4 is engineered for these demanding analytical requirements. As a Karl Fischer coulometric titrator with a measurement range extending from 0.0001% (1 ppm) to 100% and a sensitivity threshold of 0.01 μg H₂O, the instrument is capable of quantifying water content across six orders of magnitude. The 10.0-inch 1024 × 600 pixel true-color TFT-LCD display presents results simultaneously in μg, mg/L, ppm, and % — eliminating manual unit conversion and reducing transcription errors in regulated environments.

The instrument's alternating balance isolation detection technology and PWM pulse-width modulated electrolysis circuit deliver stable baseline performance and reproducible endpoint determination, even at trace moisture levels. Multiple endpoint judgment methods and calculation formula options accommodate diverse sample matrices — from volatile solvents requiring rapid titration to hygroscopic solids demanding extended electrolysis. The program-controlled stirring speed ensures consistent mixing conditions between replicate analyses.

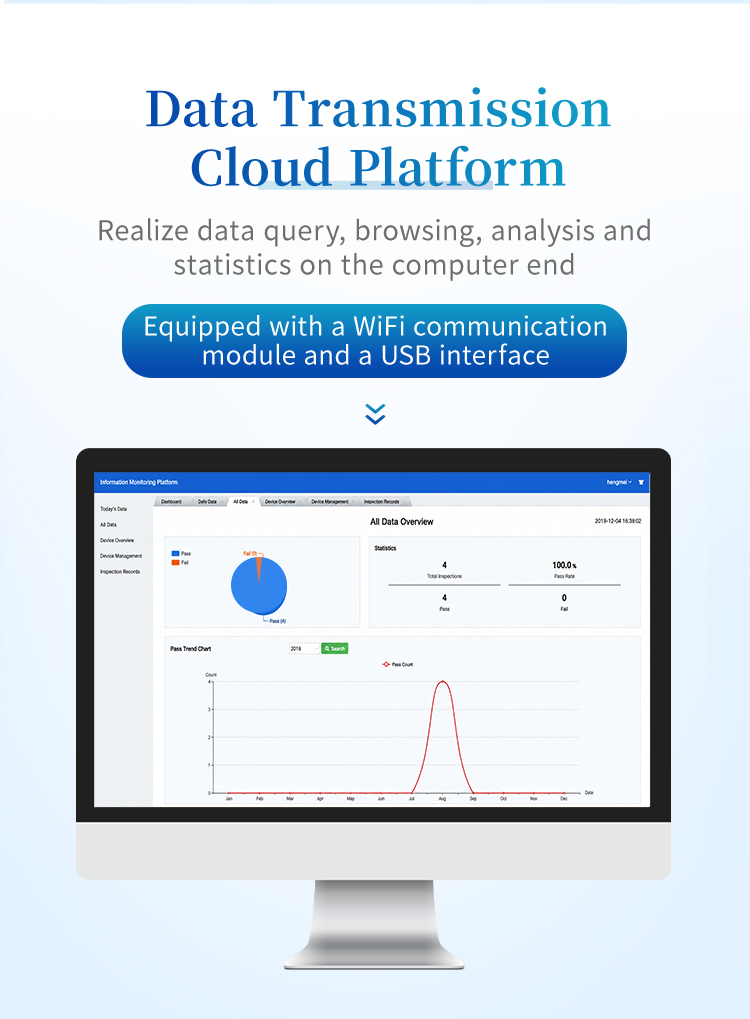

For laboratory workflow integration, the HM-WS4 provides RS232, RS485, and USB communication interfaces for connection to laboratory information management systems (LIMS) and external PCs. Mobile APP remote control enables operators to initiate and monitor titrations from outside the fume hood or while attending to other tasks. Cloud data upload supports centralized data management across multi-site operations. The optional automatic fill-and-drain system streamlines reagent handling, reducing operator exposure and ensuring consistent reagent levels. With 20,000 stored experiment results, an embedded thermal printer outputting 36-character Chinese text, and a bilingual Chinese/English interface, the HM-WS4 is equipped for both domestic and international laboratory environments.

Applications

• Pharmaceutical QC laboratories: water content determination in APIs, excipients, and finished products for pharmacopeial compliance

• Petrochemical testing: trace moisture in transformer oil, insulating oil, solvents, and chemical intermediates

• Quality inspection and certification agencies: accredited moisture analysis per national and international standards

• Electronic materials: parts-per-million water content measurement in ultra-pure chemicals and specialty gases

• Chemical manufacturing: moisture specification verification for solvents, reagents, and polymer precursors

• Food and beverage: water content determination in additives, concentrates, and processing ingredients

Key Features & Advantages

1. 0.0001% (1 ppm) sensitivity for trace-level moisture determination across pharmaceutical, petrochemical, and electronic materials applications

2. 10.0-inch 1024 × 600 pixel true-color TFT-LCD with simultaneous multi-unit display (μg, mg/L, ppm, %)

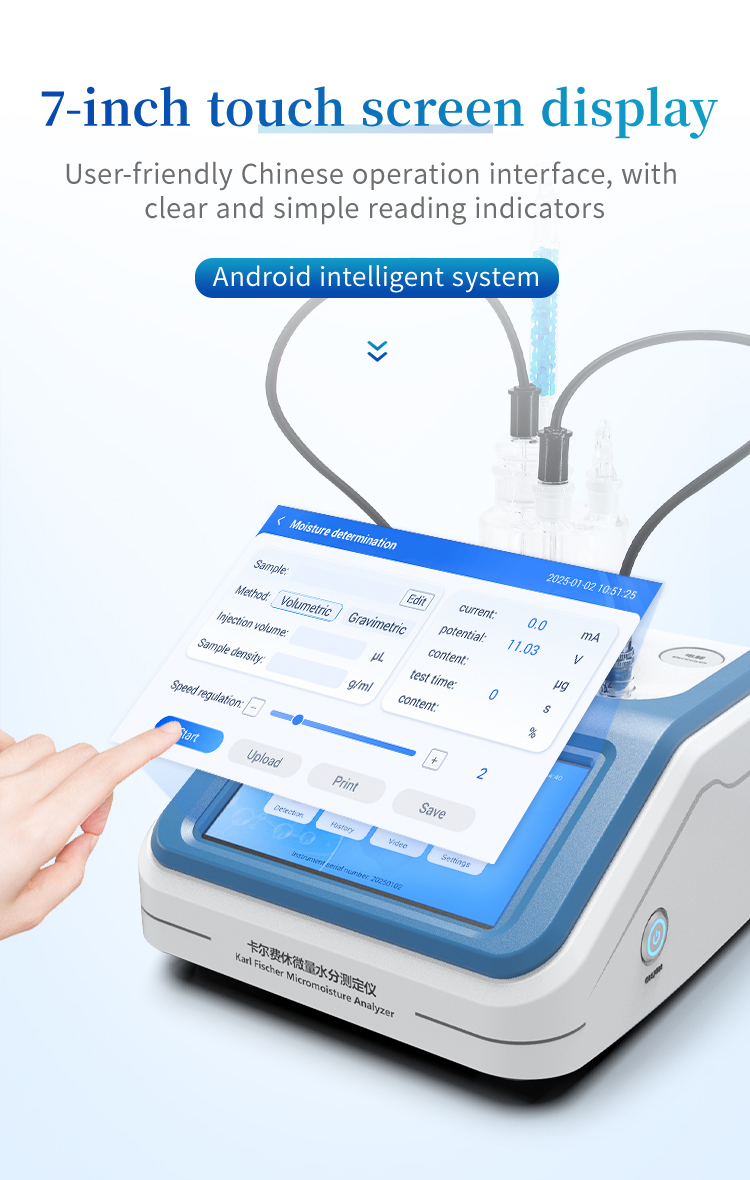

3. Cortex-A8 1 GHz processor running Android OS for responsive instrument control and data processing

4. PWM pulse-width modulated electrolysis circuit providing stable and controlled electrolysis current for reproducible results

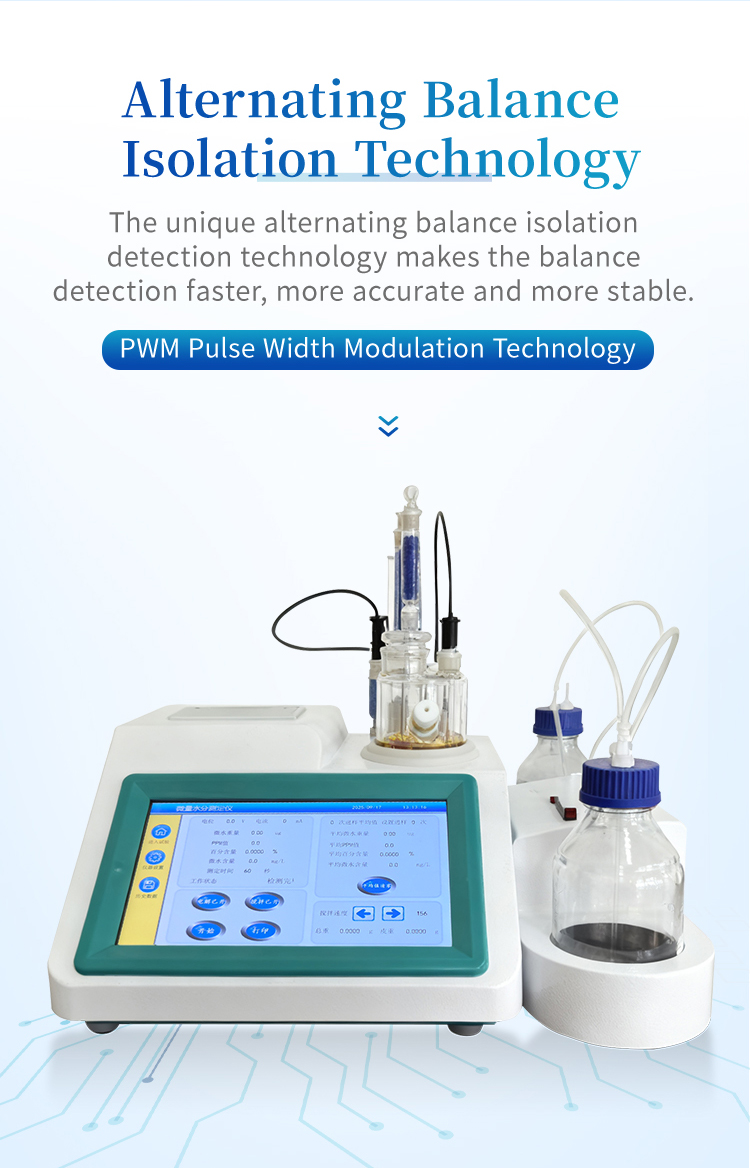

5. Alternating balance isolation detection technology for reliable baseline stability and accurate endpoint determination

6. Mobile APP remote control allowing wireless titration initiation, monitoring, and result review from a distance

7. Full communication interfaces — RS232, RS485, USB — for LIMS integration and PC data export

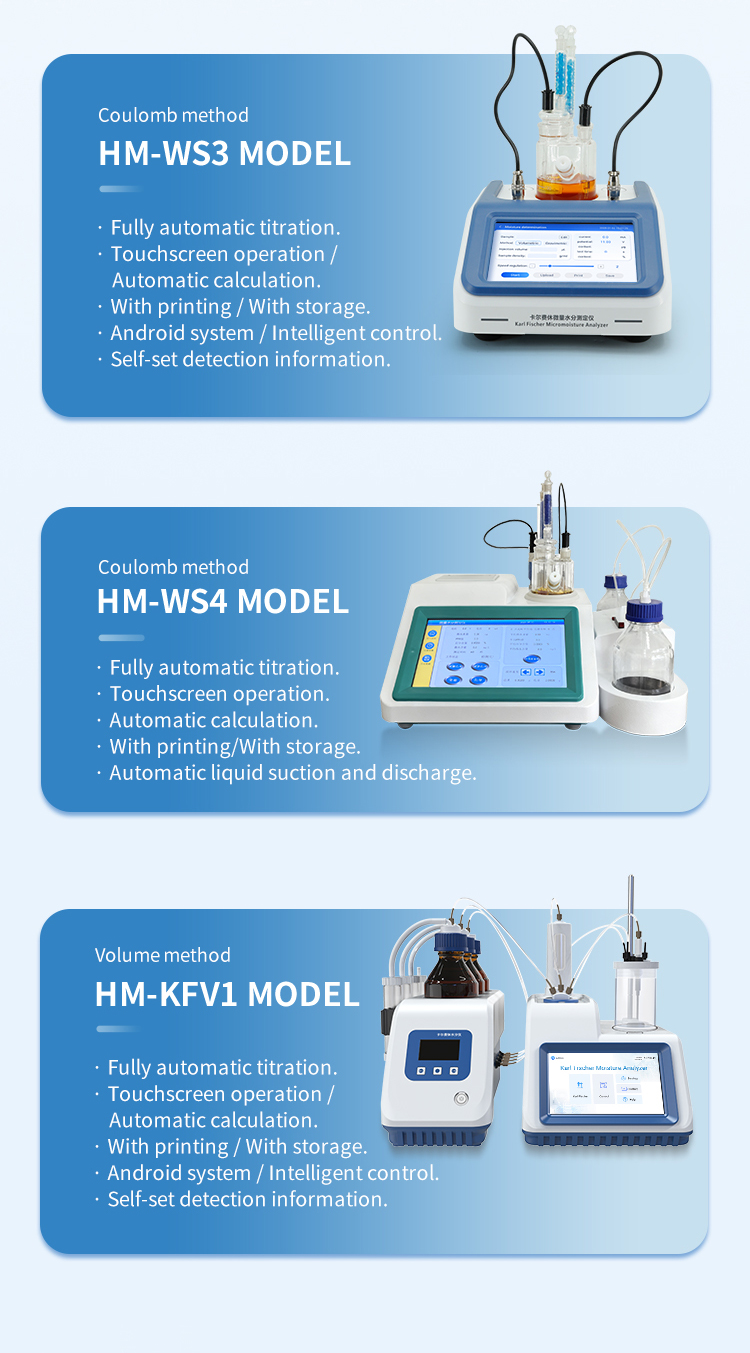

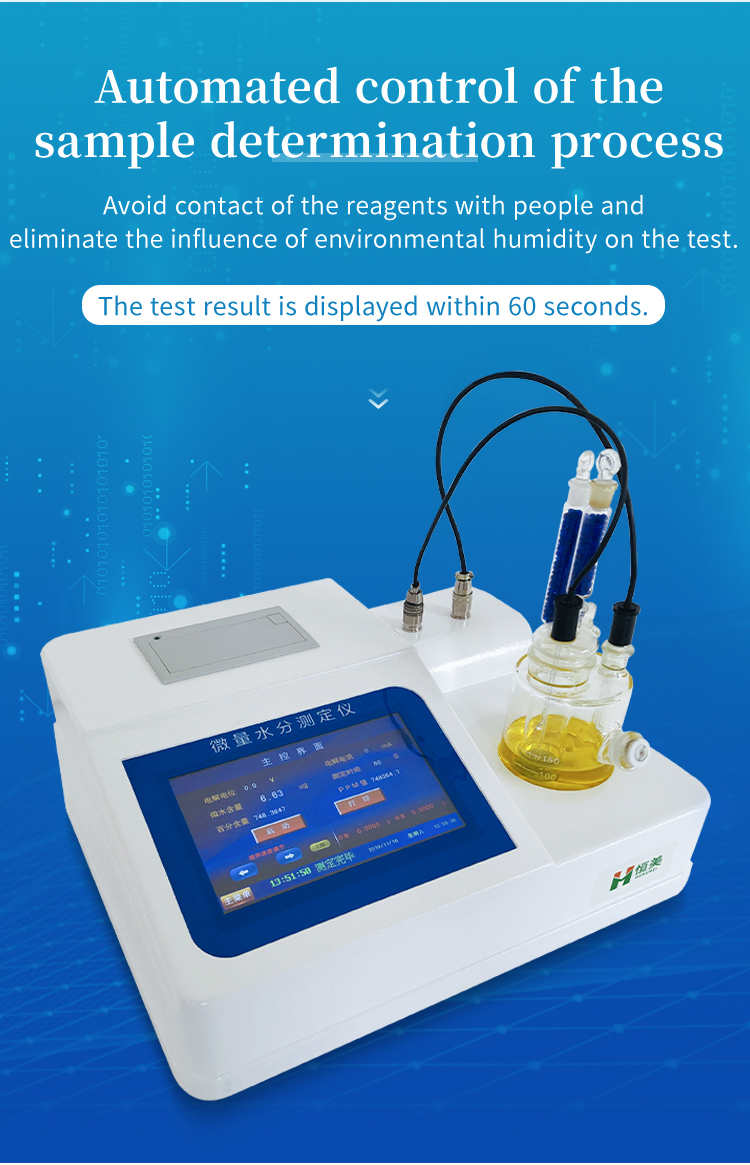

8. Optional automatic fill-and-drain system for streamlined Karl Fischer reagent management with reduced operator exposure

9. Program-controlled stirring speed ensuring reproducible mixing conditions for consistent replicate analysis

10. Multiple endpoint judgment methods and calculation formula options for diverse sample types and regulatory requirements

11. Bilingual Chinese/English interface with free switching for domestic and international laboratory deployment

12. 20,000 experiment result storage capacity for long-term data retention and audit trail compliance

13. Embedded thermal printer with 36-character Chinese output for immediate on-site documentation

14. Real-time clock (year/month/day/hour/minute/second) with power-failure retention for timestamp integrity

15. Cloud data upload for centralized quality data management across multi-site laboratory networks

16. Compliance with 25+ national and industry standards for Karl Fischer coulometric moisture determination

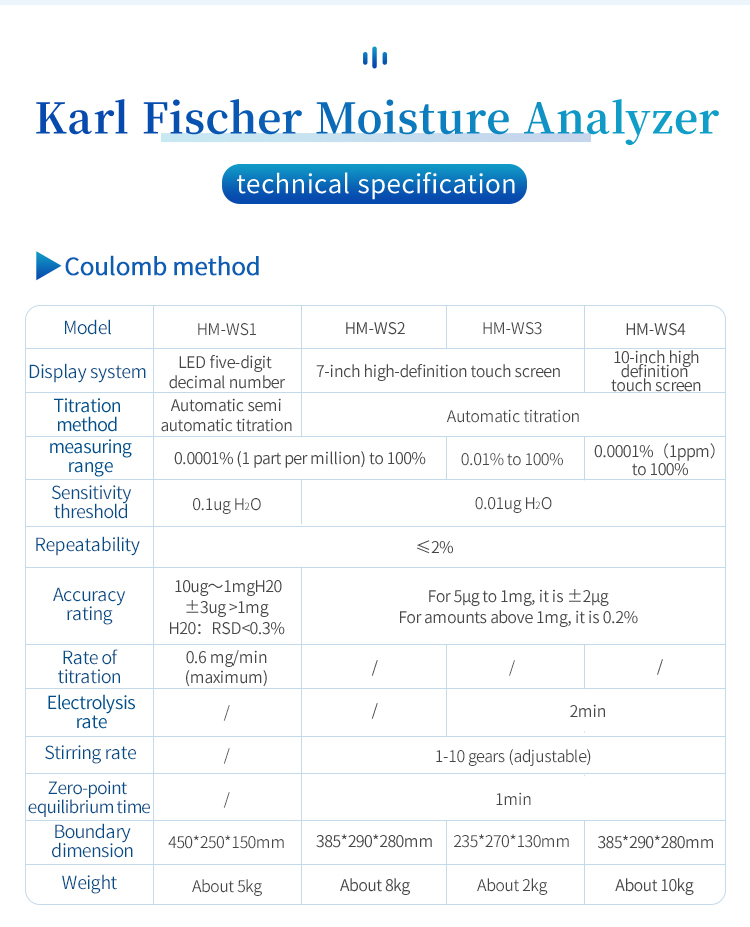

Technical Specifications

FAQ

Q1: What makes the HM-WS4 suitable for trace moisture analysis in pharmaceutical applications?

The HM-WS4 offers a measurement range starting from 0.0001% (1 ppm) with a sensitivity threshold of 0.01 μg H₂O, making it capable of detecting water content at the trace levels required by pharmacopeial standards. The PWM pulse-width modulated electrolysis circuit and alternating balance isolation detection technology provide stable baseline performance and reproducible endpoint determination, even at extremely low water concentrations. Multiple calculation formulas and endpoint judgment methods allow method customization to match specific pharmacopeial monograph requirements.

Q2: How does the mobile APP remote control benefit laboratory workflows?

The mobile APP remote control enables operators to initiate titrations, monitor progress, and review results from a distance — particularly valuable when working with volatile or toxic samples inside fume hoods, where direct instrument access requires additional PPE and time. Operators can attend to other tasks while a titration is running and receive notifications when analysis is complete. This capability improves laboratory throughput and reduces unnecessary exposure to chemical reagents.

Q3: What is the advantage of simultaneous multi-unit display?

The HM-WS4 displays results simultaneously in μg, mg/L, ppm, and %, eliminating the need for manual unit conversion. This is important in regulated environments where different standards or customers may require results in specific units. Displaying all units at once reduces transcription errors that can occur during manual conversion, ensures consistency between the displayed result and the printed report, and accelerates data review during quality audits.

Q4: How do RS232, RS485, and USB interfaces support laboratory data integration?

The three communication interfaces serve different integration purposes. RS232 provides point-to-point serial communication with a single PC, suitable for direct instrument control and data export. RS485 supports multi-drop communication, allowing several instruments to share a single communication bus — useful in laboratories with multiple analyzers connected to one LIMS workstation. USB offers convenient plug-and-play data transfer for ad-hoc result export. Together, these interfaces ensure the HM-WS4 can integrate into virtually any laboratory data infrastructure.

Q5: What is PWM pulse-width modulation and why does it matter for Karl Fischer titration?

PWM (pulse-width modulation) controls the electrolysis current by rapidly switching it on and off at a variable duty cycle, rather than using a continuously adjustable analog current. In Karl Fischer coulometric titration, this approach provides more precise control over the electrolysis rate, especially during the final approach to the endpoint where the current must decrease gradually. The result is more stable and reproducible endpoint determination compared to analog current control, which is particularly beneficial for low-water-content samples where small variations in electrolysis current significantly affect result accuracy.

Q6: How does the automatic fill-and-drain system improve laboratory operations?

The optional automatic fill-and-drain system manages Karl Fischer reagent addition and waste removal without manual intervention. This reduces operator exposure to the reagent, which contains iodine, sulfur dioxide, and organic solvents. It also ensures consistent reagent levels in the titration cell between analyses, eliminating a source of variability that can affect result reproducibility. For high-throughput laboratories running many samples per day, automatic reagent handling significantly reduces hands-on time and improves operational consistency.

Q7: Can the HM-WS4 comply with international testing standards?

The HM-WS4 complies with 25+ national and industry standards for Karl Fischer coulometric moisture determination, providing a broad foundation for regulatory compliance. The instrument's configurable detection parameters — including electrolysis current, endpoint judgment method, and calculation formula — allow method customization to match specific standard requirements. The bilingual Chinese/English interface, 20,000-record storage with real-time clock and power-failure retention, and comprehensive communication interfaces support the documentation and data integrity requirements of accredited testing laboratories.
